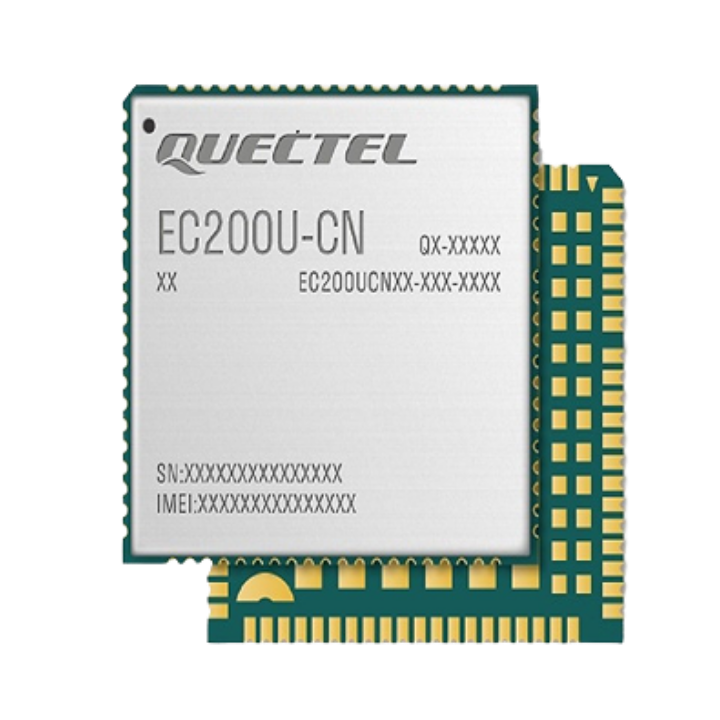

EC200U-CN-AC-N05-SNNSA – LTE Cat 1 Module for M2M & IoT
EC200U-CN-AC-N05-SNNSA is a compact 4G LTE Cat 1 module with 2G fallback, ideal for remote monitoring, VTS, OBD, and IoT gateways. Supports up to 10 Mbps DL / 5 Mbps UL, wide voltage input, and operates from -40°C to +85°C in a small 28 × 31 mm form factor.
₹675.00
EC200U Series – The EC200U-CN LTE Cat 1 module is a compact, high-performance cellular solution designed for reliable IoT connectivity across a wide range of industrial and commercial applications. With support for LTE Cat 1 and 2G fallback, it ensures stable data communication even in areas with limited LTE coverage.
Built for long-life IoT deployments, this module combines low power consumption, extended temperature tolerance, and robust network compatibility — making it ideal for remote and mobile use cases.
Key Applications
- Remote Monitoring Systems
- Data Loggers
- Vehicle Tracking Systems (VTS)
- OBD Devices
- Industrial & IoT Gateways
Key Features
- LTE Cat 1 Connectivity with 2G fallback for seamless network coverage
- High Data Speeds up to 10 Mbps (Downlink) and 5 Mbps (Uplink)
- Industrial-Grade Design for harsh environments
- Compact Form Factor suitable for space-constrained IoT devices
- Wide Voltage Range for flexible power design
Why Choose EC200U-CN?
The EC200U-CN module delivers reliable cellular performance, strong RF capability, and industrial durability, making it a dependable choice for long-term IoT deployments that demand consistent connectivity and stable operation.
| Parameter | Details |
| Network Support | LTE Cat 1 / GSM (2G) |
| LTE FDD Bands | B1 / B3 / B5 / B8 |
| LTE TDD Bands | B34 / B38 / B39 / B40 / B41 |
| GSM Bands | B3 / B8 |
| Max Data Rate | 10 Mbps (DL) / 5 Mbps (UL) |
| Pin Configuration | 144 pins (80 LCC + 64 LGA) |
| Operating Voltage | 3.3V–4.3V DC (3.8V Typical) |
| Dimensions | 28.0 × 31.0 × 2.4 mm |
| Weight | Approx. 4.1 g |
| Operating Temperature | -40°C to +85°C |
| Certifications | SRRC / NAL / CCC |
| Power Supply Type | DC |
Product Datasheet
No datasheet available for this product.
