Description

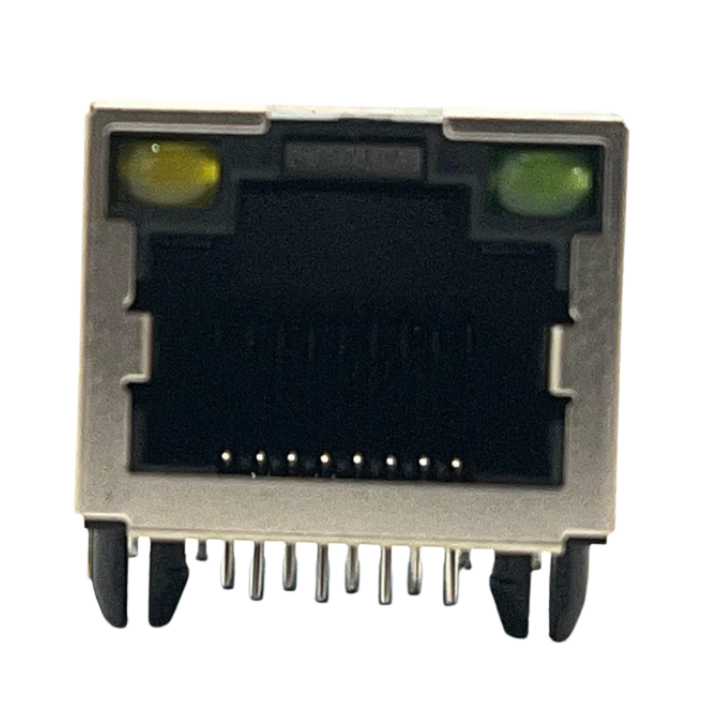

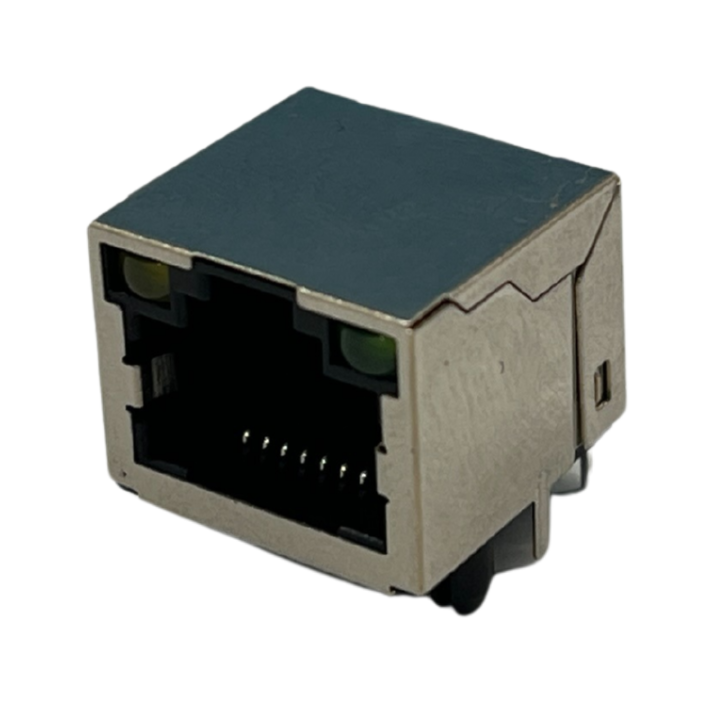

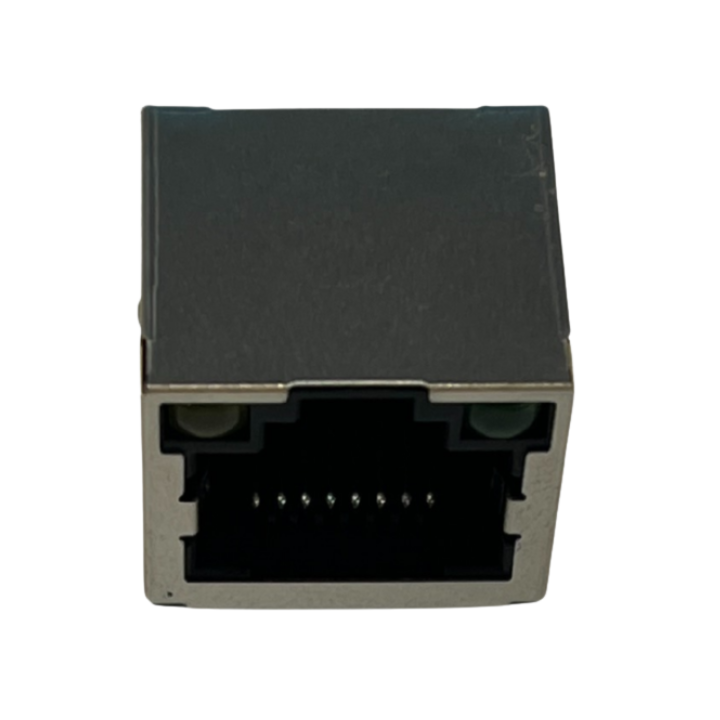

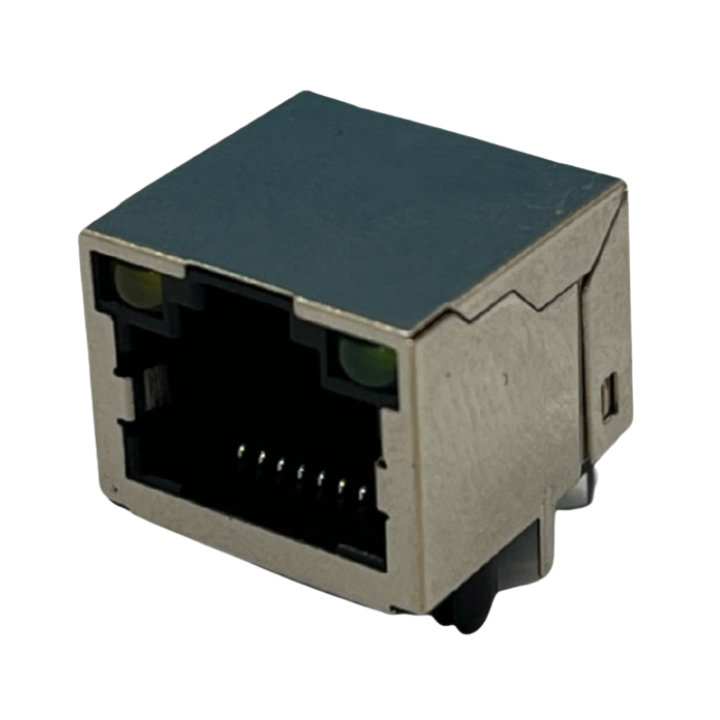

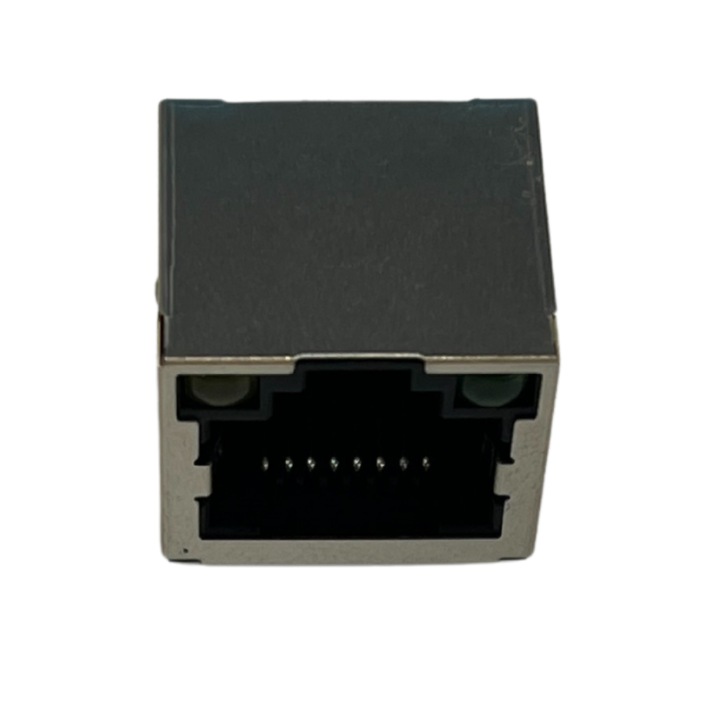

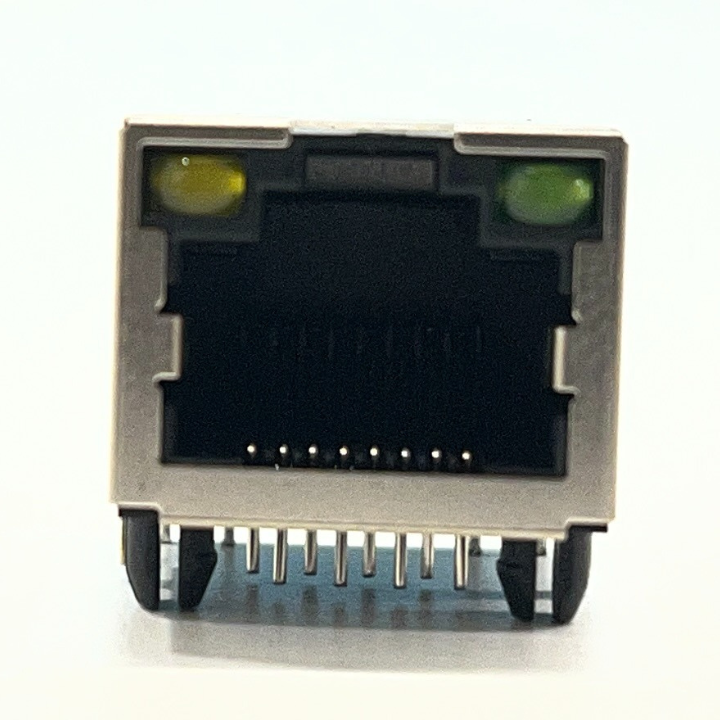

The LPJE101-0BG-ZY is a shielded RJ45 1×1 modular jack designed for through-hole (THT) mounting, featuring Yellow/Green LEDs for network link and activity indication. This side-entry (90°) connector provides superior EMI shielding, reliable connectivity, and mechanical strength, making it ideal for industrial Ethernet, embedded, and IoT applications.
Key Features
- 1×1 RJ45 Shielded Modular Jack (8P8C)
- Without Integrated Magnetics
- Through-Hole Mounting (THT)
- LED Option: Yellow/Green
- Latch Orientation: Up
- Orientation: 90° Angle (Right) / Side Entry
- Shield EMI Tabs: Yes
- PCB Material: FR4
- PCB Retaining Post: T-Post
- Gold Plating Options: 6 µin / 15 µin / 30 µin
- Wide Operating Temperature: -40°C to +85°C
- Bst Circuit: Yes
- AutomDX: Yes
- Diodes: No
- RoHS & REACH Compliant
Part & Compatibility
| Parameter | Details |
|---|---|
| Part Number | LPJE101-0BG-ZY |
| Manufacturer | LINK-PP |
| Compatible Brands | LINK-PP, Amphenol, TE Connectivity, Würth Elektronik, UDE |
| Number of Ports | 1×1 |
| Pin Type | THT Solder |
| Connector Type | Jack |
| Mounting Type | Through Hole |
| Part Status | Active |
Electrical & Mechanical Specifications
| Specification | Description |
|---|---|
| Positions/Contacts | 8P8C (RJ45, Ethernet) |
| Speed | 10/100 Base-T |
| Latch Position | Up |
| Configuration (RX/TX) | T, C |
| Turns Ratio (RX/TX) | 1CT:1CT |
| Shield EMI Tabs | With |
| Orientation | 90° (Side Entry) |
| Mating Area Plating | Gold 6 µin / 15 µin / 30 µin |
| Temperature Range | -40°C to +85°C |
| Package Height (mm/in) | 13.10 mm / 0.516 in |
| Package Length (mm/in) | 15.75 mm / 0.620 in |
| Package Width (mm/in) | 16.25 mm / 0.640 in |
| PCB Retaining Post | T Post |
| Core per Port | 1 |
| Application-LAN | Yes |
Applications
- Ethernet LAN interface ports
- Industrial networking and control systems
- Routers, switches, and IoT gateway devices
- Systems requiring visible LED indication (Yellow/Green)
- Compact PCB designs using side-entry RJ45 connectors
Documentation & Resources
LINK-PP LPJE101-0BG-ZY RJ45 1×1 Shielded Modular Jack, Without Magnetics, Yellow/Green LED, Tab Up, RoHS
Manufacturer Information
LINK-PP is a global leader in designing and manufacturing telecom networking components, specializing in RJ45 connectors, magnetics modules, and optical transceivers.
