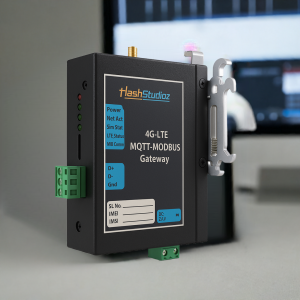

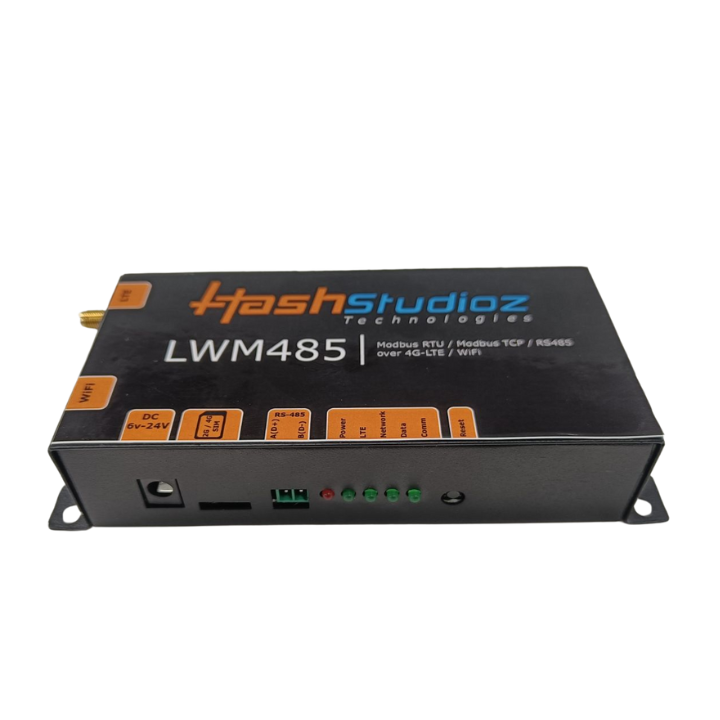

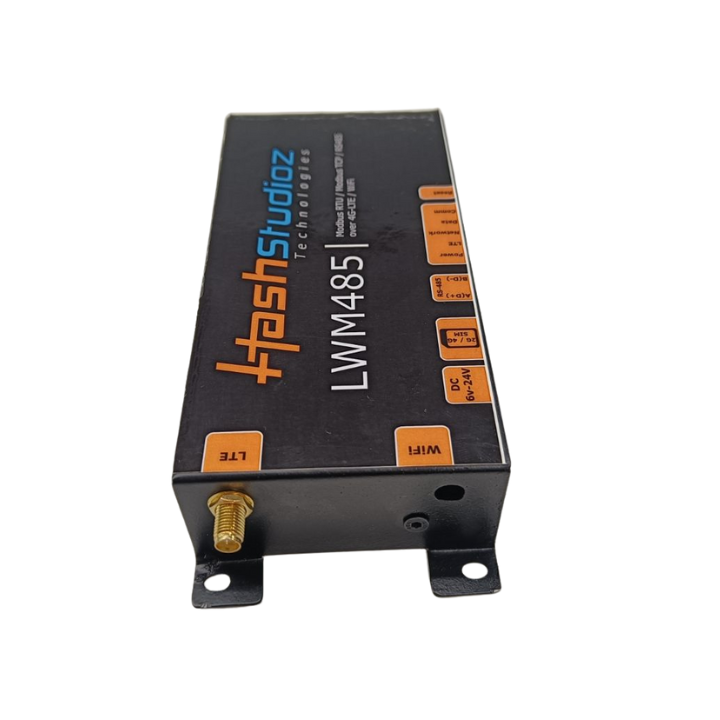

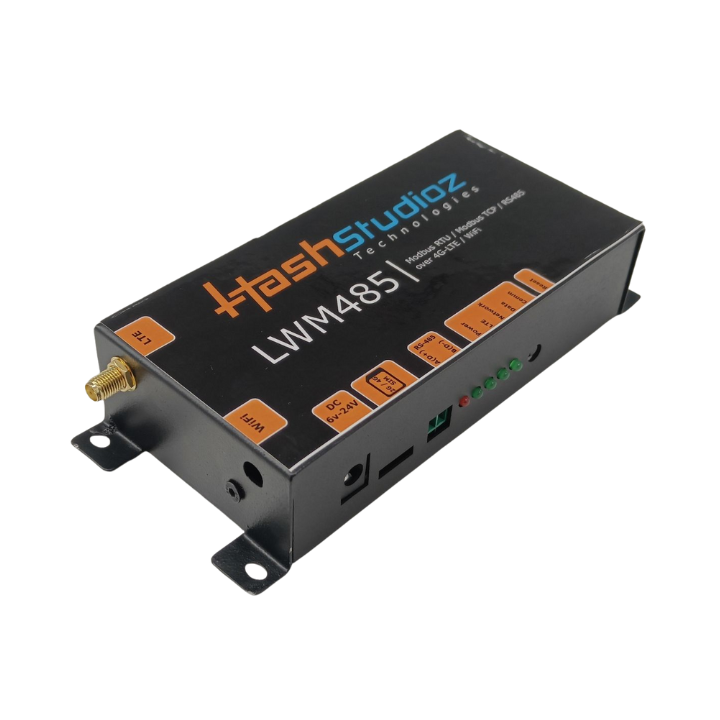

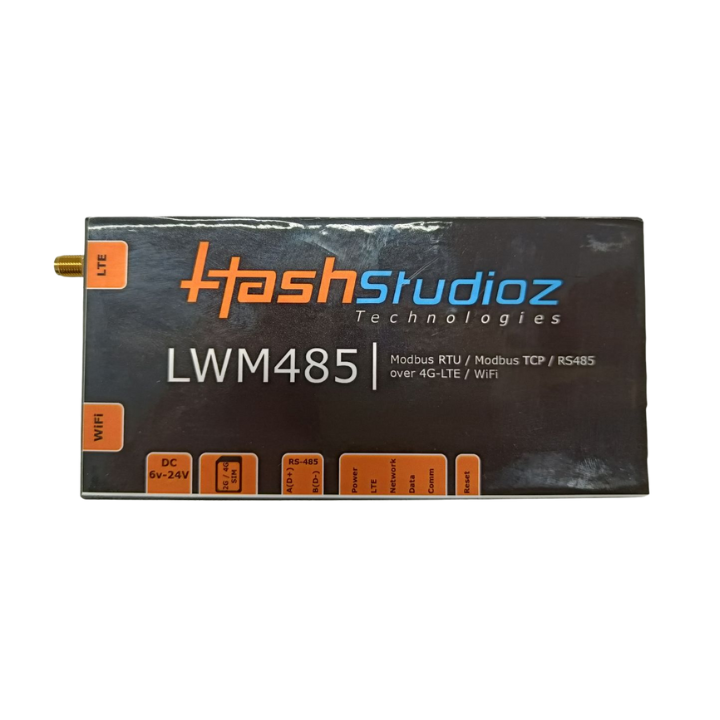

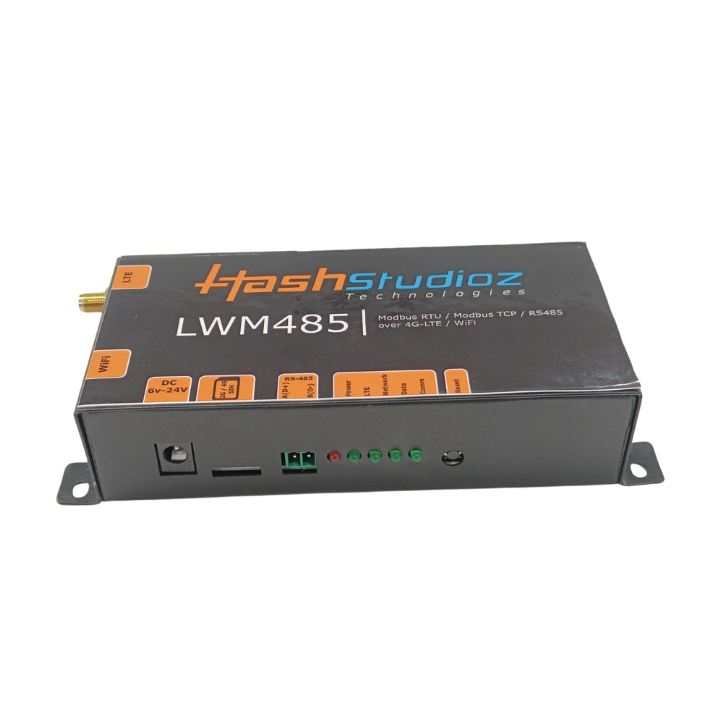

RS-485 Modbus Gateway
76 in stock
An industrial-grade IoT gateway designed to connect Modbus RS485 devices to cloud platforms via 4G or LAN. Supports Modbus RTU, MQTT, HTTP, and secure OTA updates. Ideal for automation, energy monitoring, and remote equipment control.
₹7,499.00 ₹7,999.00
76 in stock
🏢 B2B / Bulk Purchase Inquiry
For Distributors, System Integrators, OEMs & Project Buyers
✔ Special Pricing | ✔ GST Billing | ✔ Fast Dispatch
Chat on WhatsApp
HashStudioz introduces the RS485 Modbus Gateway – an industrial-grade IoT gateway designed to connect traditional Modbus RTU devices with modern cloud platforms effortlessly. Engineered for seamless protocol conversion, remote monitoring, and zero-downtime updates, this robust gateway is your ideal solution for industrial automation, energy management, smart infrastructure, and more.
Key Features at a Glance
- Multi-Protocol Support: Connects Modbus RTU devices with MQTT, TCP/IP, HTTP(S), and REST APIs for flexible integration.
- Secure Communication: Built-in TLS/SSL encryption ensures end-to-end data security.
- Remote Configuration: Configure and monitor devices remotely via SMS, GPRS, or IP-based access.
- FOTA Ready: Supports over-the-air firmware upgrades without system interruption.
- Advanced Data Handling: Includes byte swapping, scaling, and custom register mapping.
- Versatile Interfaces: 1× RS-485 Port, 1× Ethernet LAN Port.
- Cloud Compatibility: Supports AWS, Azure IoT, ThingsBoard, and custom MQTT brokers.
Why Choose the HashStudioz RS485 Modbus Gateway?
- Zero Downtime: OTA updates allow you to manage firmware upgrades without stopping operations.
- Flexible Deployment: Supports DIN rail and wall-mount options, ideal for tight enclosures and industrial cabinets.
- Cloud-Ready: Effortlessly push your field data to any cloud platform for analytics, alerts, and visualization.
- Customizable: Tailor branding, protocol behavior, and UI to suit your enterprise needs.
Technical Specifications
- Model: HSZ-RS485-GW-01
- Processor: Dual-core Xtensa LX6 @ 240 MHz
- Memory: 4 MB Flash, 520 KB SRAM
- Cellular: LTE Cat 1 (Nano SIM)
- Ethernet: 10Base-T, IEEE 802.3
- RS485: MODBUS RTU (Configurable Baud Rate: 1200–115200 bps)
- Protocols: Modbus RTU, MQTT, HTTP/HTTPS, REST
- Cloud Support: AWS, Azure, ThingsBoard, Custom
- Power Supply: 9V – 24V DC | <2W Power Consumption
- Enclosure: ABS Plastic / Optional DIN Rail Mount
- Operating Temp: -20°C to +70°C | Humidity: 10–90% RH
- Security: TLS/SSL, Secure Boot
- Dimensions: 100 × 80 × 30 mm
Based on 18 reviews
Add a review
1. Can this gateway connect my existing Modbus RTU devices to the cloud?
Yes. The RS485 Modbus Gateway converts Modbus RTU data into cloud-friendly protocols like MQTT, HTTP/HTTPS, and REST APIs, allowing seamless integration with platforms such as Amazon Web Services, Microsoft Azure, ThingsBoard, or any custom MQTT broker.
2. Is the gateway secure for industrial and remote deployments?
Absolutely. It includes TLS/SSL encryption, secure boot, and end-to-end data protection, ensuring your industrial data remains safe during transmission to the cloud.
3. Can I configure and monitor the gateway remotely?
Yes. The device supports remote configuration and monitoring via SMS, GPRS, and IP-based access, enabling you to manage installations without physical site visits.
4. Does the device support firmware updates without shutting down operations?
Yes. It is FOTA (Firmware Over-The-Air) ready, allowing firmware upgrades without interrupting ongoing operations—ensuring zero downtime.
5. What industries and applications is this gateway suitable for?
It is ideal for industrial automation, energy management systems, smart infrastructure, telemetry, and remote equipment monitoring, especially where reliable Modbus communication and cloud integration are required.
