Author: Amit Sinha

Modern cities face growing traffic and parking problems. From 2013 to 2023, car ownership grew by 30%, but road expansion only increased by 10%. This has caused more congestion, fewer parking spaces, and longer delays. Drivers in large cities spend 20-25 minutes searching for parking, making up nearly 30% of traffic. Congestion also raises fuel use by 15-20%, increasing pollution and costs.

To address these issues, smart systems that monitor parking and track traffic in real-time are key. These systems rely on sensors, data processing, and stable communication. Raspberry Pi boards, with LTE HAT modules like the 4G LTE CAT 1 HAT (Quectel EC200U) and 4G LTE CAT-4 HAT (Quectel EC200A), offer an affordable, flexible solution. With LTE, Raspberry Pi can be deployed in remote or outdoor areas without Wi-Fi, making it ideal for smart parking and traffic monitoring systems.

Understanding Urban Mobility Challenges

1. Growing Transportation Demands

Cities face challenges as traffic increases and parking availability decreases, with traditional systems unable to provide real-time data or support high-density environments.

2. Smart Mobility Solutions

Raspberry Pi devices with LTE modules (e.g., 4G LTE CAT 1 HAT and 4G LTE CAT-4 HAT) provide continuous data transmission from remote locations.

3. Real-Time Data

These systems generate real-time data streams that improve traffic flow, optimize parking, and help city planners and engineers make informed decisions.

4. Improved Traffic and Parking Management

By utilizing smart mobility systems, cities can better manage congestion and parking, enhancing urban mobility and efficiency.

Why Raspberry Pi is Suitable for Smart Mobility Projects

1.  Affordable and Cost-Effective

Raspberry Pi provides a cost-effective platform with powerful features, making it perfect for large-scale smart mobility projects. Its affordability enables cities to implement efficient solutions within budget, making it accessible to a wide range of users.

2. Powerful Processing Capabilities

Raspberry Pi can run full operating systems and handle complex tasks like real-time data processing and machine learning. This allows smart mobility systems to make quick decisions, improving traffic flow and parking management in real-time.

3. Wide Compatibility with Sensors and Communication Modules

Raspberry Pi supports a variety of sensors (ultrasonic, cameras, etc.) and communication modules (LTE, Wi-Fi, Bluetooth), providing the flexibility to integrate with diverse smart mobility systems, from parking management to traffic monitoring.

4. Support for Advanced Software and AI Frameworks

Raspberry Pi supports popular programming languages like Python and C++, and integrates with AI frameworks like TensorFlow Lite and OpenCV. This makes it perfect for creating intelligent systems that can process real-time data for traffic and parking optimization.

5. Energy-Efficient for Outdoor Applications

With low power consumption, Raspberry Pi is well-suited for solar-powered outdoor installations. It enables the deployment of smart systems in remote or off-grid areas, providing a sustainable and cost-effective solution.

6. Flexible Connectivity with LTE and Other Networks

Raspberry Pi, paired with LTE modules, offers reliable long-range connectivity, even in areas without Wi-Fi. This makes it ideal for remote or mobile deployments, ensuring continuous data transmission for traffic and parking management.

7. Scalability for Growing Projects

The modular design of Raspberry Pi allows for easy expansion as projects grow. You can add more sensors, increase processing power, or integrate new technologies without overhauling the entire system, ensuring flexibility and scalability.

8. Open-Source and Community Support

Raspberry Pi benefits from a robust open-source community that provides resources, tutorials, and solutions. Developers can access support and collaborate with others to solve challenges, improving the efficiency of their smart mobility projects.

9. Compact and Durable for Tough Environments

Raspberry Pi’s small size and durable design make it ideal for deployment in tough environments, such as outdoor urban spaces or highways. It can withstand extreme weather conditions, ensuring reliable operation in real-world settings.

10. Easy Integration with Real-Time Data Processing and Edge Computing

Raspberry Pi supports edge computing, allowing for local data processing and minimizing latency. This is critical for smart mobility systems that require immediate action, such as adjusting traffic lights or notifying drivers of available parking.

Top 10 IoT App Development Companies in India for 2025

Why LTE Connectivity Is Required in Smart City Systems

1. Reliable Connectivity

Smart parking and traffic monitoring systems are often deployed in areas where Wi-Fi is unavailable or unreliable. LTE provides stable, wide-area coverage, overcoming challenges like signal interference, weak connections, and physical obstacles.

2. Wide-Area Coverage

LTE ensures consistent connectivity in remote locations; however, with the help of signal repeaters, it can also extend coverage across urban environments such as highways, parking lots, building rooftops, and even underground structures.

3. Weather Resistance

Unlike some wireless protocols, LTE connectivity remains stable in adverse weather conditions like heavy rain or interference, ensuring reliable performance in diverse environments.

4. Enhanced Security

With SIM-based authentication, LTE provides an additional layer of security. Devices connect using verified identities, and encryption protocols protect sensitive data such as license plate numbers or traffic violation records.

5. No Need for Local Infrastructure

LTE eliminates the need for costly and time-consuming network cables or Wi-Fi access points, making it easier and more affordable to deploy sensors in remote or difficult-to-reach locations.

6. Cost & Time Efficiency

By removing the requirement for local infrastructure, LTE reduces installation time, lowers costs, and offers greater flexibility for future system upgrades and expansions.

LTE is a reliable, secure, and cost-effective solution for smart parking and traffic monitoring, especially in outdoor and remote environments.

Detailed Review of Raspberry Pi LTE HAT Modules

Two LTE HAT models are widely used in smart mobility systems. Each one offers different performance characteristics for different workloads.

Raspberry Pi 4G LTE CAT 1 HAT with Quectel EC200U

The EC200U LTE CAT1 HAT is designed for applications that need moderate data rates. It offers reliable connectivity with low energy consumption, making it ideal for parking sensors and simple traffic systems.

Technical Characteristics

The module supports global LTE bands, offering compatibility across many regions. It connects through USB to the Raspberry Pi, enabling stable communication without complex drivers. The module also includes support for SMS, network registration feedback, and sometimes GNSS features depending on the variant. Its power-efficient design makes it suitable for battery-based outdoor systems.

Typical Use Cases

CAT1 works well for low-data parking sensors, such as magnetic and ultrasonic modules, because these sensors send small packets. It also suits lightweight camera-based solutions that send compressed images at low frequency. For traffic systems, CAT1 handles radar sensors and vehicle counters that generate small data amounts.

Raspberry Pi 4G LTE CAT4 HAT with Quectel EC200A

The EC200A LTE CAT4 HAT supports higher data rates and lower latency, making it suitable for video-heavy applications or high-speed communication needs.

Technical Characteristics

This module offers higher uplink and downlink speeds, allowing it to transmit video frames, AI detection results, and complex sensor data. It supports VoLTE, GNSS (model dependent), and a range of LTE bands. The module handles intensive communication without overheating, making it suitable for continuous streaming.

Typical Use Cases

CAT4 is important for video-based parking systems, traffic cameras, number plate recognition, and AI-enhanced vehicle classification. These systems generate large amounts of data and need a stable, fast LTE link to send real-time information to cloud servers or central control rooms.

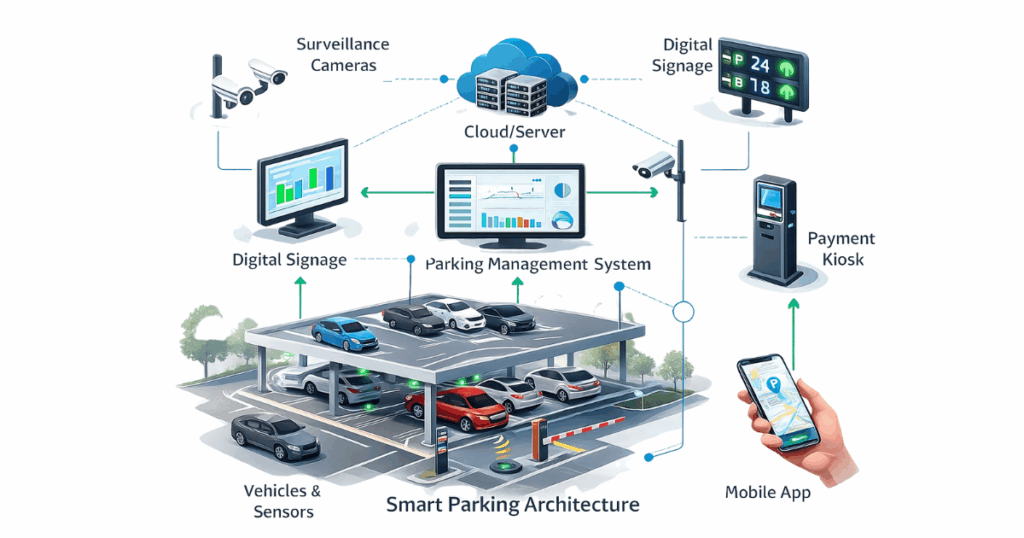

Smart Parking System: Detailed Architecture

A smart parking system consists of distributed sensors, edge nodes, cloud platforms, and user-facing applications. The core controller for each sensor group is usually a Raspberry Pi with an LTE HAT.

1. Sensor Layer

Parking sensors detect the presence or absence of vehicles. Ultrasonic sensors measure distance, magnetic sensors measure field distortion, and infrared sensors detect objects through IR beams. Camera-based sensors use computer vision to detect parking occupancy and read license plates for automated entry systems.

2. Edge Processing Layer

The Raspberry Pi collects sensor data and analyzes it in real time. It may perform noise filtering, threshold evaluation, or AI inference. The Pi determines occupancy, spot availability, and event triggers such as unauthorized parking.

3. Communication Layer

Once processed, the Pi sends the data through the LTE HAT to cloud servers. The system may use MQTT for efficient small packets or HTTPS for high-security communication.

4. Cloud Layer

Cloud services store the data, generate visual dashboards, and provide APIs for mobile apps. They also forecast parking demand and generate reports for administrators.

5. User Interface Layer

Drivers access parking information through apps, websites, or digital signboards. They receive live occupancy updates, spot suggestions, and guidance to reduce search time.

Traffic Monitoring System: Detailed Architecture

Traffic monitoring systems track vehicle movement, identify congestion, detect incidents, and classify vehicles.

1. Sensor Layer

Radar sensors measure speed and direction, inductive loops detect vehicle count, and camera modules capture visual data. Environmental sensors measure pollution, noise, and temperature to evaluate traffic impact.

2. Edge Layer

Raspberry Pi devices run local algorithms to process speed, volume, and lane occupancy. For camera systems, Pi devices perform motion detection, object tracking, and AI-based vehicle classification.

3. Communication Layer

CAT1 modules handle small traffic data, while CAT4 modules transmit high-resolution images and video samples. Data moves securely to cloud servers in real time.

4. Cloud Layer

Cloud platforms combine data from many nodes to create city-wide traffic maps. They support event detection, trend analysis, and congestion prediction.

5. Control Room Interface

City authorities view dashboards showing live and historical traffic conditions. They adjust signal timings or send alerts based on detected patterns.

Use Cases Explained in Depth

1. Large-Scale Parking Management

Commercial centers, airports, and stadiums can install hundreds of parking sensors connected to Raspberry Pi nodes. Each node processes occupancy locally and sends updates through CAT1.

2. Highway Traffic Surveillance

Highways use AI cameras connected through CAT4 modules to detect accidents, slowdowns, or unusual lane movements. Raspberry Pi handles AI tasks locally and sends alerts to highway control centers to reduce response time.

3. Smart Street Parking

Cities install small sensor units tied to Raspberry Pi and CAT1 HATs. These units send updates every few seconds, enabling drivers to view real-time roadside parking availability and reducing unnecessary traffic movement.

Cloud Integration and Data Handling

Smart mobility systems depend on strong cloud integration for long-term storage, analytics, and visualization. The cloud handles large databases, predictive algorithms, revenue tracking for parking, sensor health monitoring, and integration with other city services. MQTT provides low-bandwidth communication suited for sensors, while HTTPS supports more secure and larger data transfers.

Power Management Considerations

Outdoor deployments often rely on solar panels. Engineers design systems with low energy consumption by adjusting sensor intervals, lowering camera frame rates, enabling Raspberry Pi sleep modes, and choosing CAT1 modules when high-speed data is unnecessary.

Security Requirements

Smart mobility systems handle sensitive information such as license plates and user payment details. Security measures include SIM authentication, encrypted data channels, secure firmware, access controls, and tamper-resistant enclosures.

Deployment Challenges and Solutions

Weather conditions can affect sensor accuracy, power availability, and camera visibility. Engineers must choose durable enclosures, install protective covers, calibrate sensors regularly, and ensure LTE antennas are placed correctly for strong reception.

Future Trends for Smart Mobility

Future systems will use AI to predict congestion, integrate 5G for ultra-low latency, use better edge processors for local analysis, and support vehicle-to-infrastructure communication. Unified platforms will combine parking, traffic, public transport, and emergency systems for holistic city management.

Revolutionize Parking & Traffic Management with LTE-Powered IoT Solutions

In today’s fast-growing smart city ecosystem, real-time data is the key to efficient parking, reduced congestion, and improved urban mobility. Raspberry Pi LTE HAT–based systems empower organizations with continuous connectivity, live monitoring, and intelligent automation.

At IoTStudioz, we help municipalities, enterprises, and facility managers design and deploy LTE-enabled smart parking and traffic monitoring solutions that enhance visibility, streamline operations, and improve user experience.

Contact IoTStudioz today and transform your parking and traffic infrastructure with reliable, data-driven IoT intelligence.

Conclusion

Smart parking and traffic monitoring systems are essential for modern cities facing rapid growth in vehicle demand. Raspberry Pi with LTE HAT modules gives engineers a flexible, powerful, and cost-effective way to build these systems. The Raspberry Pi 4G LTE CAT 1 HAT with Quectel EC200U suits low-data applications like sensor-based parking, while the Raspberry Pi 4G LTE CAT4 HAT with Quectel EC200A supports video-rich applications in traffic surveillance.

These technologies offer real-time data, reduce congestion, improve parking availability, and support long-term city planning. As IoT and AI continue to advance, Raspberry Pi–based systems will remain a key part of smart mobility frameworks.

Frequently Asked Questions (FAQ)

1. What is the main difference between the Raspberry Pi 4G LTE CAT 1 HAT with Quectel EC200U and the CAT4 HAT with Quectel EC200A?

The CAT 1 HAT supports lower bandwidth. It sends small sensor packets for parking and basic traffic data. The CAT4 HAT supports much higher speeds. It handles live camera feeds, video analytics, and image uploads. Both work well in outdoor conditions but serve different data workload levels.

2. How accurate are parking and traffic monitoring systems with Raspberry Pi?

Accuracy depends on the chosen sensors. Magnetic and camera-based systems often reach above 95% accuracy in detecting occupancy or vehicle presence. AI models on Raspberry Pi refine counts and reduce false alerts. Correct calibration ensures strong results in long-term use.

3. Can LTE-based solutions work in remote parking areas without power lines?

Yes. Field units can run on compact solar systems with batteries. Raspberry Pi uses low power so outdoor installations stay active even during outages. CAT1 and CAT4 LTE offer reliable coverage in rural zones with no wired networks.

4. How does edge analytics help reduce data cost in traffic monitoring?

Edge software on the Pi processes videos and sensors locally. It sends only results such as object count or speed instead of raw footage. This reduces cellular data use by up to 40%. It also increases privacy because sensitive video does not leave the roadside unit.

5. How fast can smart parking and traffic systems respond to events?

Systems send alerts within a few seconds through LTE. CAT4 modules enable near real-time video clips for review. Faster responses help reduce accident risk, congestion, and emergency delays. Operators receive consistent updates to maintain safe roads.
