E103-W20 (MT7688) Serial to WiFi OpenWrt Module
Availability:
50 in stock
The E103-W20 (7688) module is a low-cost, low-power IoT communication solution based on the MediaTek MT7688AN/MT7628AN platform. It exposes all major interfaces of the chipset, providing developers with extensive connectivity and control options.
₹1,500.00
50 in stock
🏢 B2B / Bulk Purchase Inquiry
For Distributors, System Integrators, OEMs & Project Buyers
✔ Special Pricing | ✔ GST Billing | ✔ Fast Dispatch

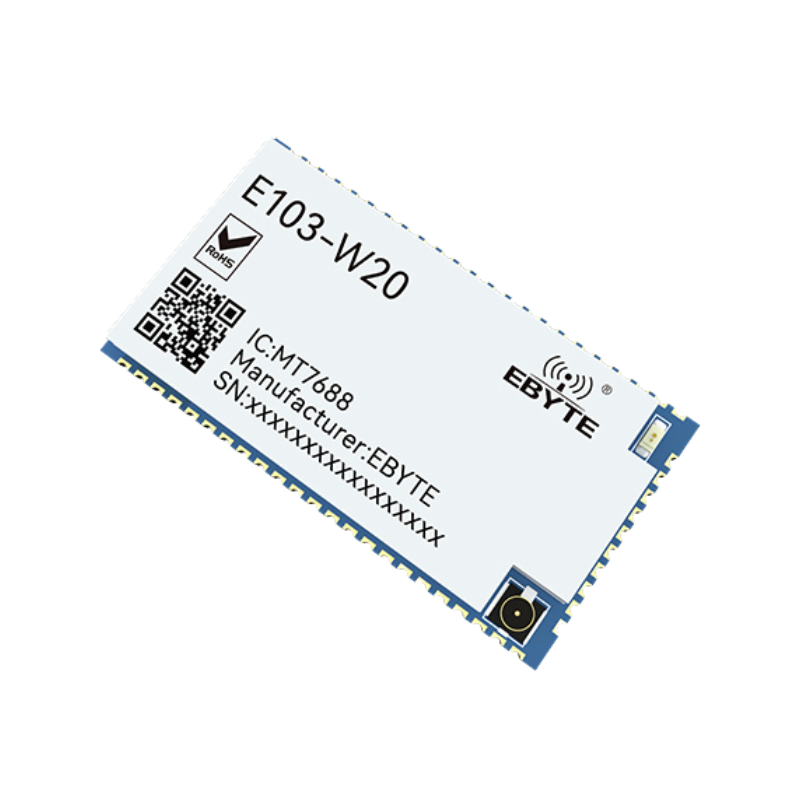

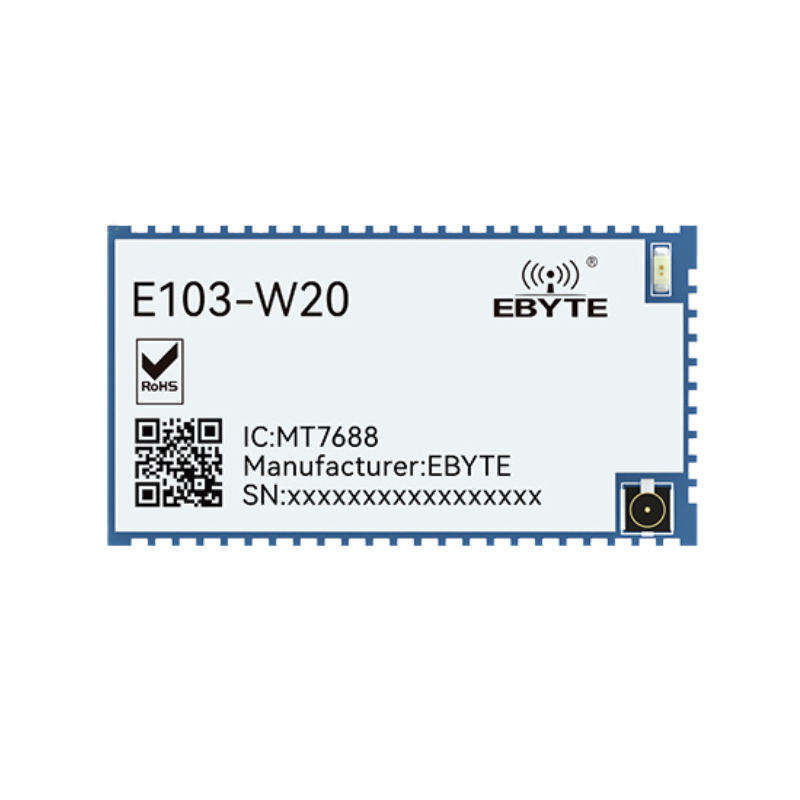

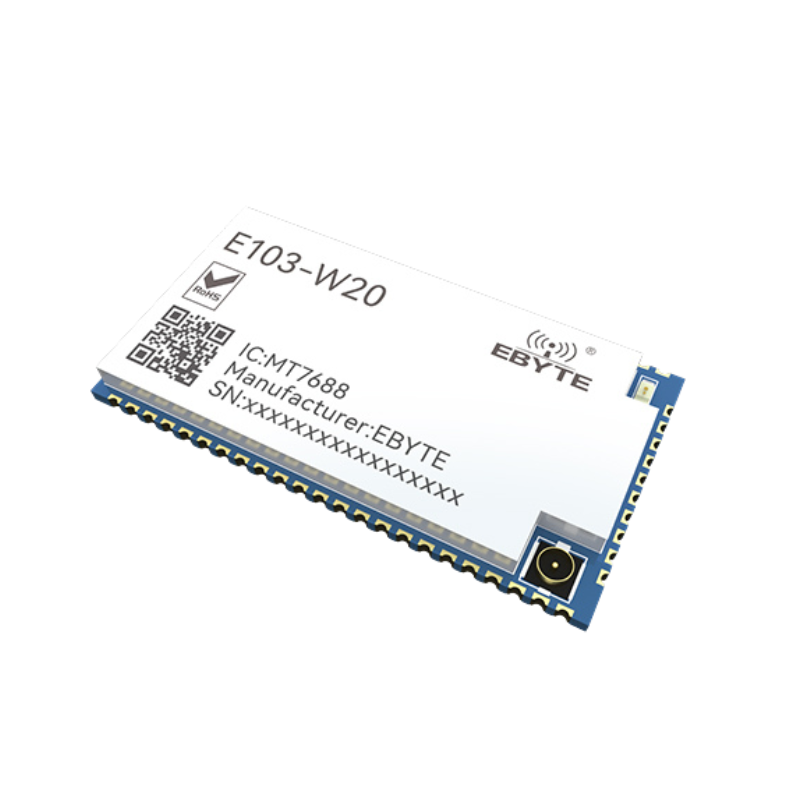

The 𝗘𝟭𝟬𝟯-𝗪𝟮𝟬 (𝟳𝟲𝟴𝟴) is a compact, high-performance Serial-to-WiFi wireless routing module built on the powerful MT7688AN chip solution. Designed for IoT and smart device applications, this module supports the OpenWrt operating system, enabling flexible customization and secondary development for a wide range of embedded and cloud-based solutions.
With its small form factor, low power consumption, and robust wireless performance, the E103-W20 is ideal for industrial control, smart home systems, wireless data transmission, and IoT gateway applications.
Application Areas
-
Smart Home Devices
-
Industrial Automation
-
IoT Gateways
-
Wireless Data Transmission
-
Remote Monitoring Systems
-
Cloud-Based Embedded Solutions
Key Specification
• 𝗖𝗵𝗶𝗽𝘀𝗲𝘁 𝗦𝗼𝗹𝘂𝘁𝗶𝗼𝗻: MT7688AN / MT7628AN
• 𝗢𝗽𝗲𝗿𝗮𝘁𝗶𝗻𝗴 𝗦𝘆𝘀𝘁𝗲𝗺: OpenWrt (Supports Custom Development)
• 𝗪𝗶𝗙𝗶 𝗦𝘁𝗮𝗻𝗱𝗮𝗿𝗱𝘀: IEEE 802.11 b/g/n
• 𝗧𝗿𝗮𝗻𝘀𝗺𝗶𝘀𝘀𝗶𝗼𝗻 𝗣𝗼𝘄𝗲𝗿: 20–24 dBm
• 𝗠𝗖𝗨 𝗠𝗮𝗶𝗻 𝗙𝗿𝗲𝗾𝘂𝗲𝗻𝗰𝘆: 580 MHz
• 𝗖𝗼𝗺𝗺𝘂𝗻𝗶𝗰𝗮𝘁𝗶𝗼𝗻 𝗗𝗶𝘀𝘁𝗮𝗻𝗰𝗲: Up to 200 meters
• Compact Patch-Type Design for easy PCB integration
• Serial Port to WiFi Functionality
• Low Power & Cost-Effective IoT Solution
-
Dimensions:
-
34.1 × 18.7 × 2.77 mm
-
36.1 × 18.7 × 2.7 mm (variant option)
-
-
Weight: 3.5g ± 0.1g
