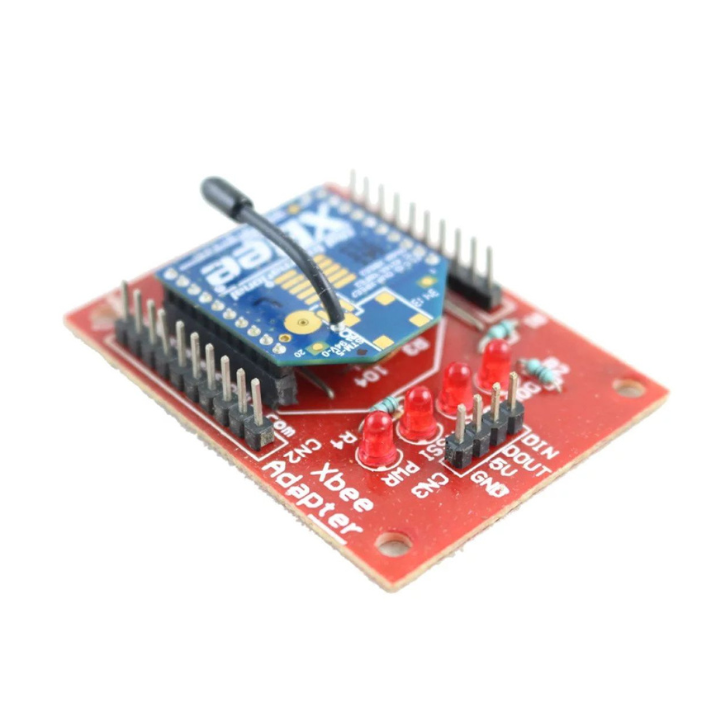

The XBee Adapter Board provides a simple and efficient way to interface XBee wireless modules with any prototyping or development board. Designed with both transmitter and receiver support, it includes a 3.3V low-drop voltage regulator and LED indicators for Power, RSSI, and Associate status.

This adapter offers direct access to all XBee pins through (2×10) 2.0 mm pitch male and female connectors, allowing easy mounting on general-purpose PCBs. It enables smooth serial communication and clear monitoring of XBee’s RX/TX signals using onboard status LEDs.

Key Features

• Supports ZigBee PRO feature set

• Offers ZigBee wireless connectivity for RS232, RS485, and USB devices

• Fully compatible with XBee modules and XBee gateways

• Provides an outdoor range up to 1 mile when used with XBee-PRO

• Includes LED indicators for RSSI, Associate, Power, RX, and TX

• Features a 3.3V low-drop regulator for stable operation

• Comes with 2×10 (2.0 mm) pitch connectors for easy mounting and interface
