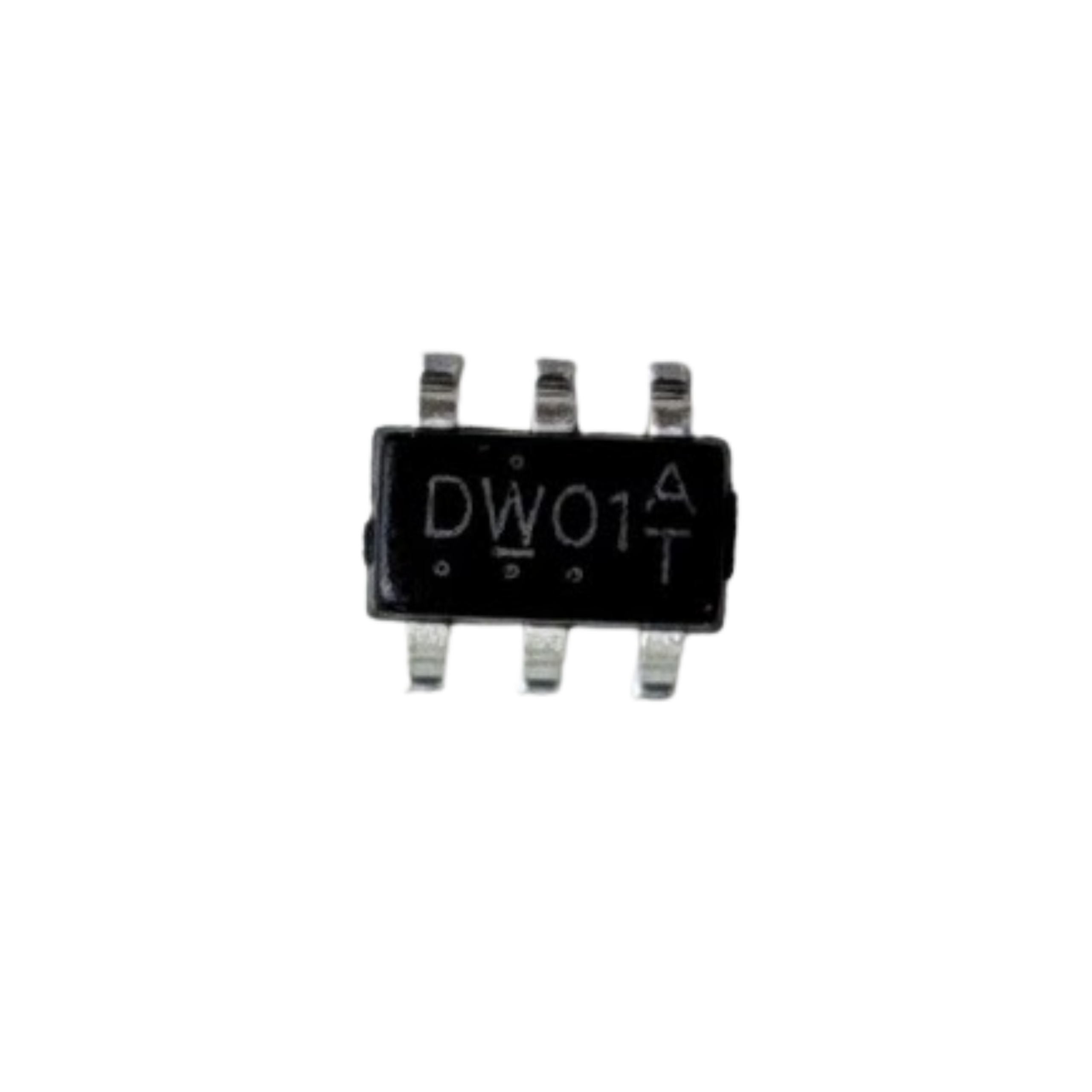

The PUOLOP DW01A is a lithium-ion and lithium-polymer battery protection IC designed to protect single-cell battery packs against overcharging, over-discharging, overcurrent, and short-circuit conditions. Its compact SOT-23-6L package and low power consumption make it suitable for space-constrained battery-powered electronic devices.

The DW01A features a precise overcharge detection voltage of 4.3V ±50mV and an ultra-low quiescent current of just 3µA, helping minimize battery drain during standby. It also provides two levels of overcurrent detection and uses internal circuits to manage protection delay times, eliminating the need for external capacitors for this function.

With support for 0V battery charging and a wide operating temperature range, the PUOLOP DW01A is an effective solution for enhancing the safety, reliability, and service life of single-cell lithium battery packs.

Key Features

• Comprehensive Battery Protection: Protects against overcharging, over-discharging, overcurrent, and short circuits.

• Low Power Consumption: Ultra-low quiescent current of 3µA at VCC = 3.6V.

• Precision Overcharge Detection: 4.3V ±50mV detection voltage.

• Dual-Level Overcurrent Protection: Provides two detection levels for improved battery safety.

• Compact Package: SOT-23-6L package helps reduce PCB size.

• Internal Delay Circuits: Generates protection delay times without requiring external timing components.

• 0V Battery Charging Support: Supports 0V battery charging.

• Wide Operating Temperature: Operates from -40°C to +85°C.

• Low Standby Drain: Helps preserve battery capacity during storage.

Applications

• Single-cell lithium-ion battery packs

• Lithium-polymer battery packs

• Mobile phones and portable electronics

• Battery-powered embedded systems

• Rechargeable electronic devices

• Compact battery management and protection circuits

Product Specifications
