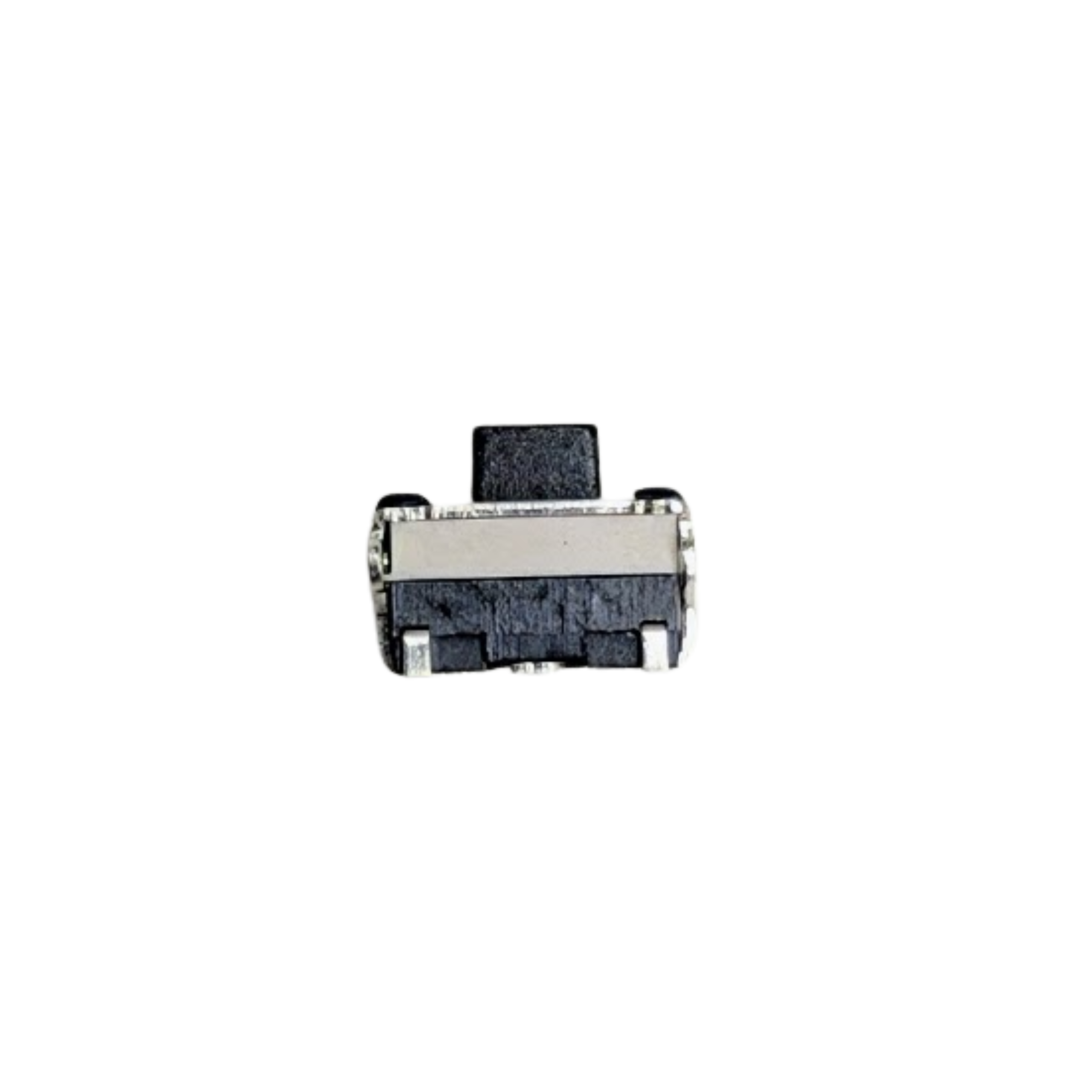

The SHOU HAN TS24ZJ-HBQB is a compact surface-mount tactile switch designed for reliable momentary switching in electronic devices and PCB assemblies. Featuring a right-angle mounting design, a rectangular black actuator, and an integrated mounting bracket, it is suitable for space-constrained applications that require convenient and dependable user input.

The switch operates with a force of 1.6N and supports a rated voltage of 12V with a contact current of 50mA. Its rated mechanical switching life of 30,000 cycles makes it suitable for applications involving frequent button presses.

With compact dimensions of approximately 4.6mm in length, 1.8mm in width, and 3.55mm in height, the TS24ZJ-HBQB offers a practical solution for control panels, consumer electronics, and embedded devices. It operates within a temperature range of -20°C to +70°C.

Key Features

• Compact SMD Design: Suitable for space-efficient PCB layouts.

• Right-Angle Mounting: Supports side-actuated switch designs.

• Tactile Operation: Provides a physical button interface for user input.

• Operating Force: 1.6N for button activation.

• Rated Voltage: 12V.

• Contact Current: 50mA.

• Switching Life: Rated for 30,000 cycles.

• Rectangular Actuator: Features a black button.

• SPST Circuit: Single-pole, single-throw switching configuration.

• Integrated Bracket: Supports mounting stability.

• Operating Temperature: -20°C to +70°C.

Applications

• Consumer electronic devices

• Embedded systems and development boards

• PCB-mounted control buttons

• Portable electronic equipment

• Industrial control interfaces

• Small electronic appliances

• User interface and function-selection buttons
