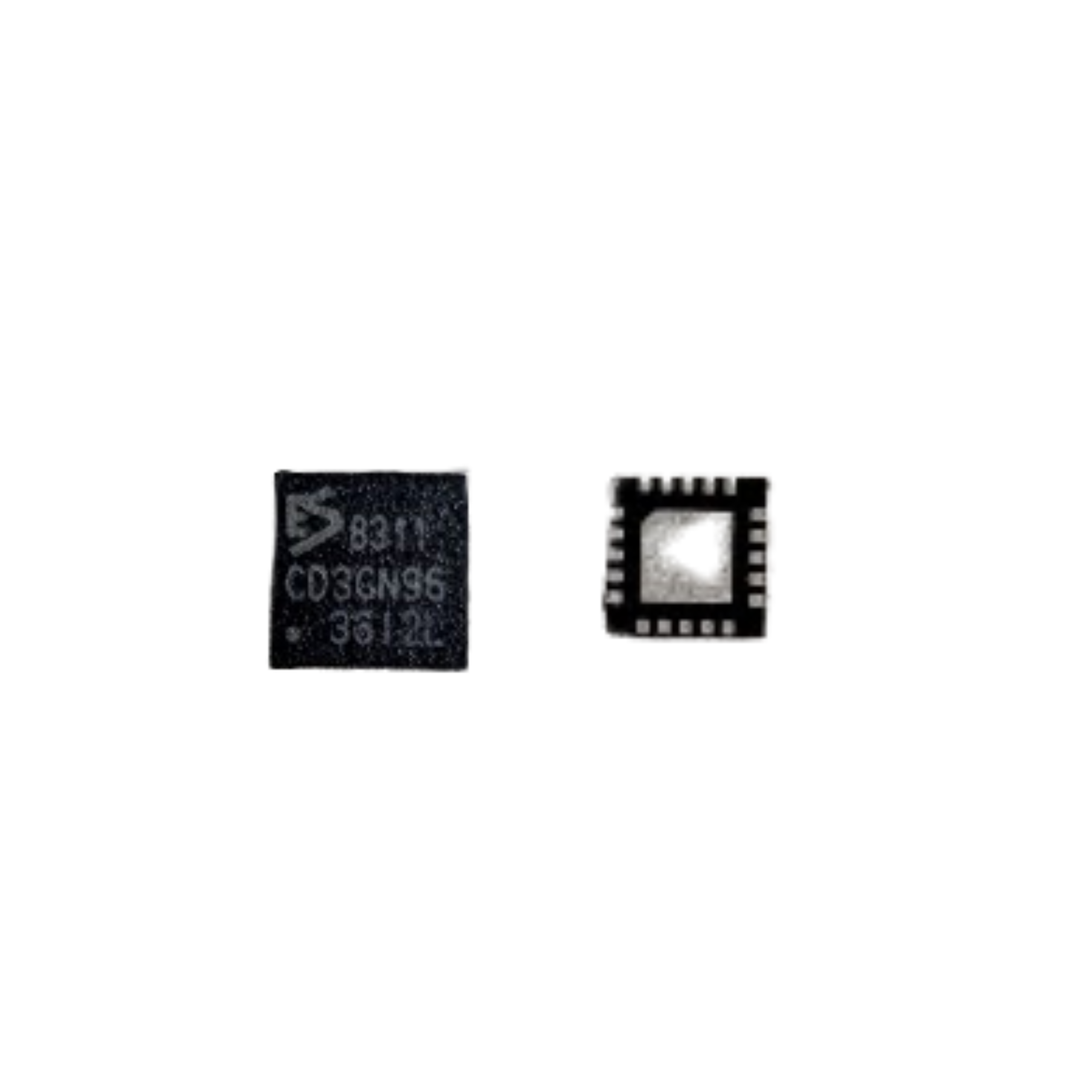

The Everest Semiconductor ES8311 is a low-power, high-performance audio codec IC featuring multibit delta-sigma analog-to-digital conversion (ADC) and digital-to-analog conversion (DAC). It is designed for audio recording and playback applications that require clear sound quality, low power consumption, and a compact circuit design.

The ES8311 supports 24-bit audio processing with sampling rates ranging from 8 kHz to 96 kHz. It provides I2S/PCM digital audio interfaces and an I2C control interface, allowing integration with microcontrollers, processors, and embedded audio systems.

This audio codec includes features such as a low-noise preamplifier, noise-reduction filters, automatic level control (ALC), a noise gate, dynamic range compression, and pop-and-click noise suppression. It supports both analog and digital microphones and offers headphone-driving capability for versatile audio system designs.

Operating from a 1.8V to 3.3V supply, the ES8311 is housed in a compact QFN-20-EP package measuring 3 × 3 mm, making it suitable for space-constrained and battery-powered electronic devices.

Key Features

• High-Performance Audio Codec: Integrated multibit delta-sigma ADC and DAC.

• 24-Bit Audio Processing: Supports sampling rates from 8 kHz to 96 kHz.

• Digital Audio Interfaces: Supports I2S/PCM operation in master or slave mode.

• I2C Control Interface: Enables configuration and control through a compatible host processor.

• Low-Noise Preamplifier: Supports audio input signal conditioning.

• Microphone Support: Compatible with analog and digital microphones.

• Audio Enhancement: Includes noise-reduction filters, automatic level control (ALC), and noise-gate functionality.

• Playback Features: Includes a headphone driver, dynamic range compression, and pop-and-click noise suppression.

• Low-Voltage Operation: Operates with a 1.8V to 3.3V power supply.

• Low Power Consumption: Designed for energy-efficient audio recording and playback.

• Compact Package: QFN-20-EP package with a 3 × 3 mm footprint.

• Wide Operating Temperature: Supports operation from -40°C to +105°C.

Product Specifications

Applications

The ES8311 audio codec IC is suitable for a range of embedded and consumer audio products, including:

• Smartphones and communication devices

• Two-way radios

• Automotive audio systems

• Dash cameras

• IP cameras

• Digital video recorders (DVRs)

• Network video recorders (NVRs)

• Surveillance equipment

• Electronic toys

• Embedded audio recording and playback systems
