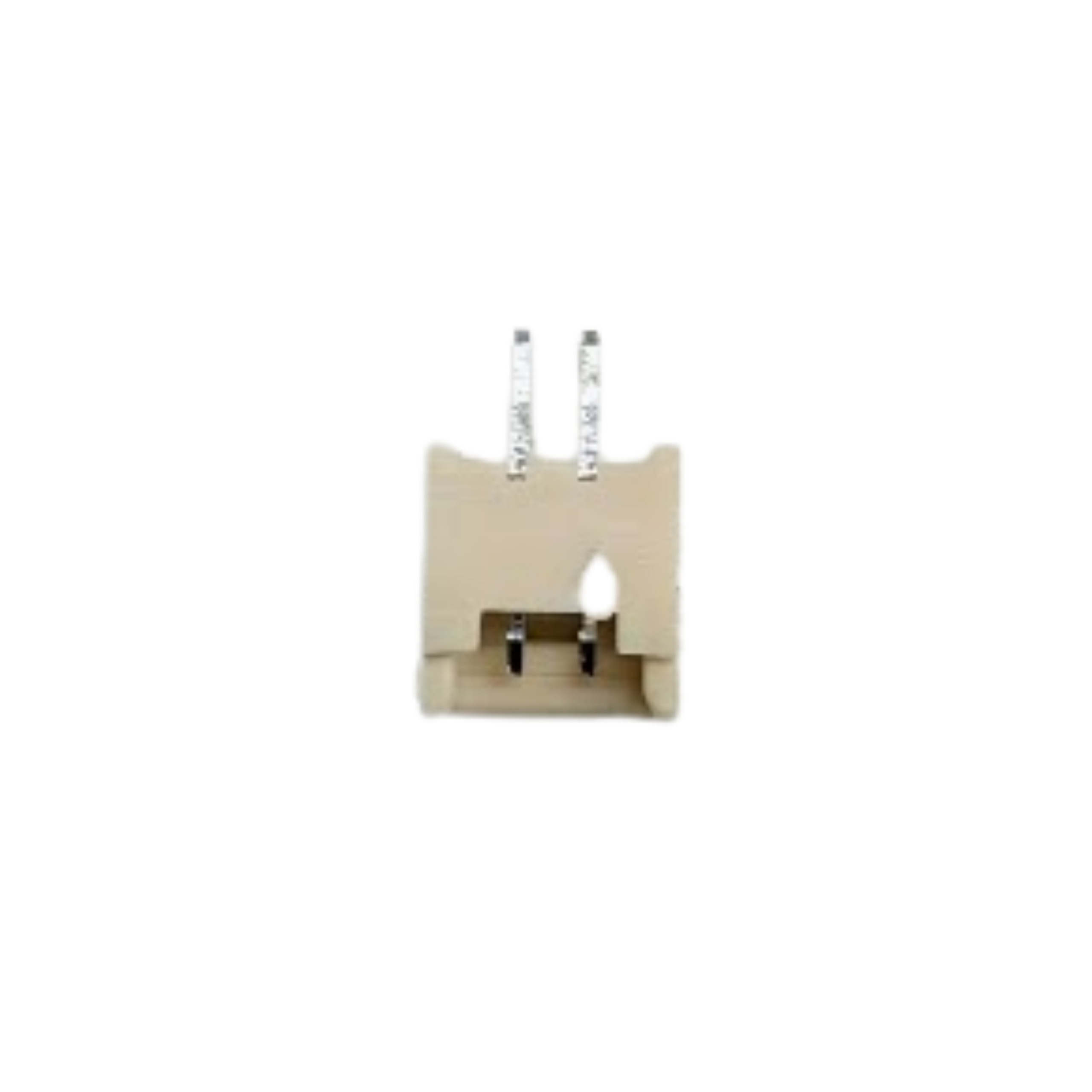

The SHETIME 7800-02A1-TG is a compact 2-pin wire-to-board connector designed for reliable electrical connections in electronic devices and PCB assemblies. Featuring a 1.25mm pitch and through-hole mounting, it provides a space-efficient connection solution for applications requiring secure wire-to-PCB integration.

This connector supports a current rating of up to 1A and a maximum voltage rating of 125V. It features brass contacts with tin plating and a durable PA66 plastic housing, offering dependable electrical connectivity and mechanical stability. With an operating temperature range of -25°C to +85°C, it is suitable for various electronic and embedded applications.

Designed for compatibility with AWG 28–32 wires and PCBs with a thickness of 0.6–1.2mm, the SHETIME 7800-02A1-TG is a practical choice for compact electronic assemblies.

Key Features

• 2-Pin Configuration: Single-row, 1×2 pin layout.

• Compact 1.25mm Pitch: Suitable for space-constrained PCB designs.

• Through-Hole Mounting: Supports secure PCB installation.

• Current Rating: Up to 1A.

• Maximum Voltage Rating: 125V.

• Durable Contacts: Brass contact material with tin plating.

• Robust Housing: Made from PA66 plastic.

• Wire Compatibility: Supports AWG 28–32 wires.

• PCB Compatibility: Suitable for PCB thicknesses of 0.6–1.2mm.

• Wide Operating Temperature: -25°C to +85°C.

• Interchangeable Design: Connectors with identical specifications are interchangeable.

Applications

• Embedded electronic systems

• PCB wire-to-board connections

• Consumer electronic devices

• Industrial electronic equipment

• Compact control boards

• Power and signal connections

• Electronic modules and circuit assemblies
