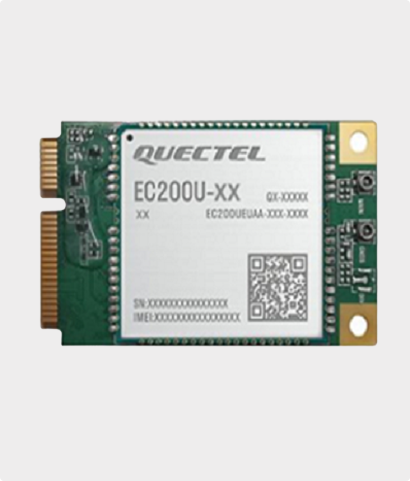

EC200UEUNAA-N05-MN0AA
Out of stock
Quectel EC200U series is a series of the latest LTE Cat 1 module optimized specially for M2M and IoT applications. It delivers maximum data rates up to 10 Mbps downlink and 5 Mbps uplink. Designed in the compact and unified form factor, EC200U series is compatible with Quectel multi-mode LTE Standard EC25 series/EC21 series/ EC20 R2.1/ EC20-CN/EC200T series/EC200S series/EC25-G/EC21-G and UMTS/HSPA+ UC200T series, ensuring that it can easily migrate from 3G to 4G network. EC200U series also supports standard Mini PCIe packages to meet the needs of different industry applications.
₹1,440.00
Out of stock
- 1a- Category – LTE Family
- Sub-Category – EC200U-EU MiniPCIe Series
- Remote Monitoring, Data Logger, VTS, OBD, Gateway.
- Speed: Max – 10 Mbps (DL) / Max 5 Mbps (UL), LTE-FDD: Max. 10Mbps (DL)/Max. 5Mbps (UL), LTE-TDD: Max. 8.96 (DL)/ Max. 3.1(UL)
- Supply Voltage: 3.0V – 3.6 V, 3.3V Typ. (EC200U-EU Mini PCIe)
- Dimension: 51.0 × 30.0 × 4.9 mm (EC200U-EU Mini PCIe)
- Network – LTE Cat1 / 2G
- Extended Temperature Range: -40°C ~ +80°C
- Bands:
- LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 ; LTE TDD: B38/B40/B41 ; GSM: B2/B3/B5/B8
- Supply Source: V-DC
- Additional Feature: GNSS / BLE 4.2 / Wi-Fi Scan Support.
Based on 0 reviews
Be the first to review “EC200UEUNAA-N05-MN0AA”
Product Datasheet
No datasheet available for this product.
