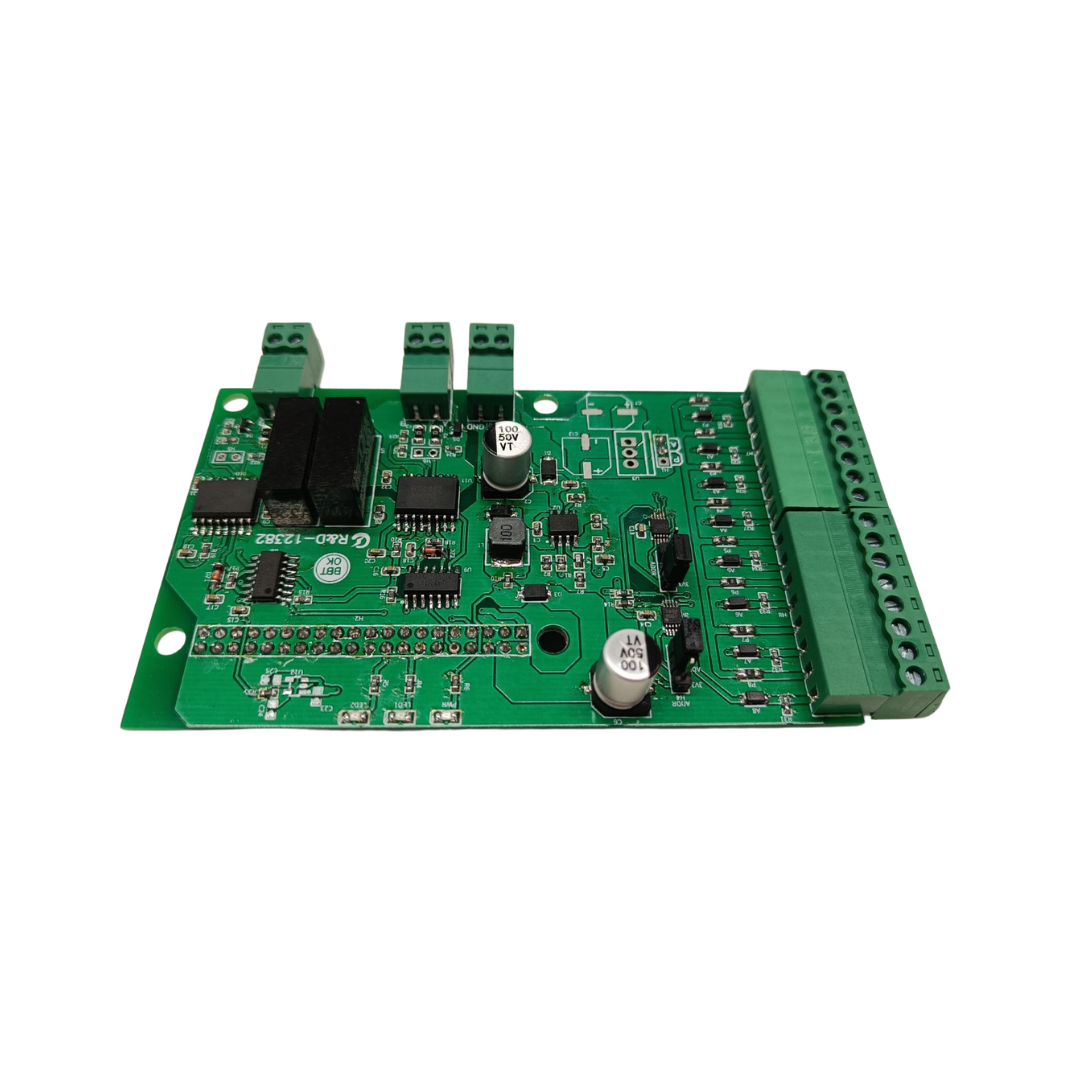

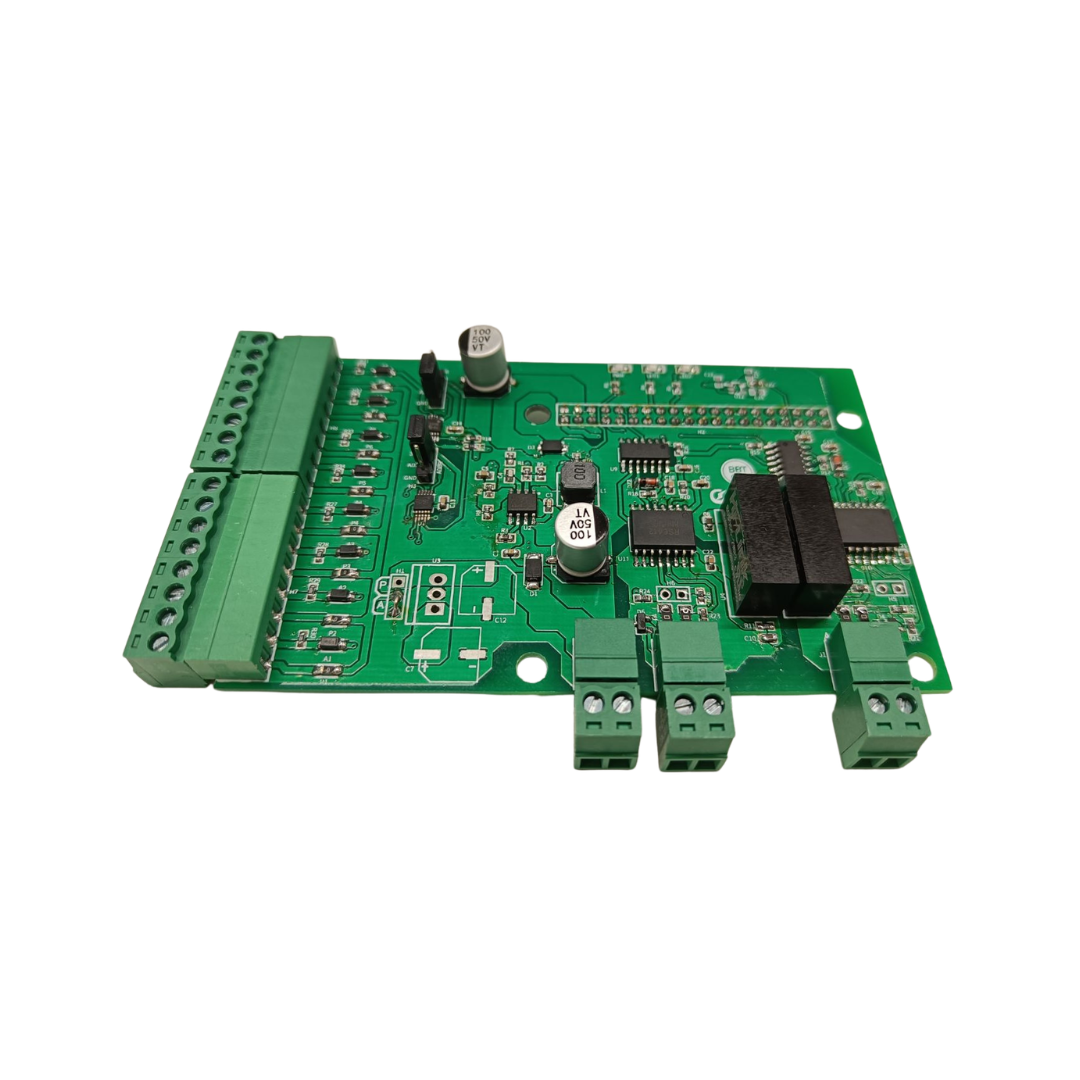

Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports
,

Raspberry Pi 5 HAT with 8 Analog Inputs (4–20mA) and 2 RS485 Ports

🏢 Request Bulk Pricing for Your Project

For Distributors, System Integrators, OEMs & Project Buyers

✔ Bulk Discounts | ✔ GST Billing | ✔ Fast Dispatch

Raspberry Pi 5 HAT – 8 AI & Dual RS-485 designed for reliable data collection, automation, and IoT applications with plug-and-play setup and built-in protection. Easily connect industrial sensors and devices to your Raspberry Pi 5, featuring 8 high-precision 4–20 mA inputs and dual RS-485 ports.

₹6,500.00

Upgrade your industrial and IoT projects with this powerful and reliable expansion HAT designed specifically for Raspberry Pi 5. Combining 2-channel isolated RS485 communication and 8-channel 4–20mA input, this HAT is ideal for industrial automation, data acquisition, and process control applications.

Built for harsh environments, it ensures stable performance, enhanced protection, and seamless integration with industrial systems.

Key Features:

  • Dual Industrial RS485 Interfaces: Get the best of both worlds with RS485 communication and  ideal for sensors, PLCs, and industrial devices.
  • Built for Tough Environments: With isolation, surge protection, and anti-interference design, your system stays safe and stable.
  • Plug & Play with Raspberry Pi 5: Simple I2C interface ensures quick setup and easy control.
  • Reliable & Safe Operation: Advanced protection circuits safeguard your system from voltage spikes, overloads, and electrical noise.
  • 8-Channel 4-20 mA Analog Input: Supports connection of up to eight industrial sensors (such as pressure, temperature, and flow transmitters) for reliable and noise-immune data acquisition.

Use Cases

  • Industrial Automation: Connect PLCs, sensors, meters, and industrial equipment with Raspberry Pi 5.
  • Industrial IoT (IIoT): Collect field data and connect industrial devices to IoT platforms.
  • Process Control: Monitor pressure, temperature, flow, and other process parameters.
  • Data Acquisition: Collect reliable analog data from up to 8 industrial 4–20mA sensors.
  • Smart Energy Monitoring: Interface with energy meters and industrial monitoring devices.
  • Building Management: Monitor HVAC, environmental sensors, and building automation systems.
  • Remote Monitoring: Enable centralized monitoring of industrial equipment and field devices.

Perfect For

  • Industrial Automation
  • IoT & IIoT Solutions
  • Smart Energy Monitoring
  • Process Control Systems
  • Building Management Systems
Categories: , Tags: , Brand:

Specifications

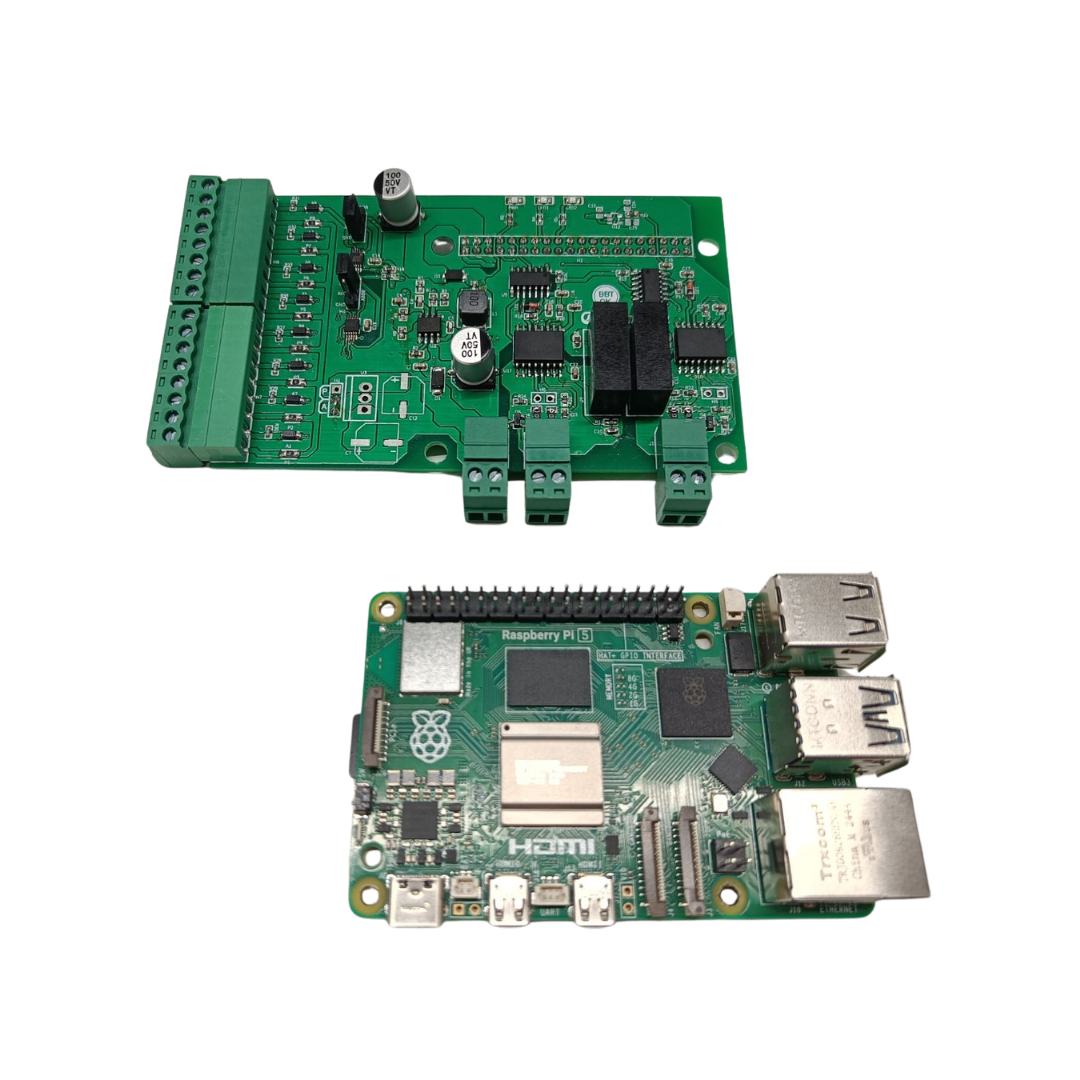

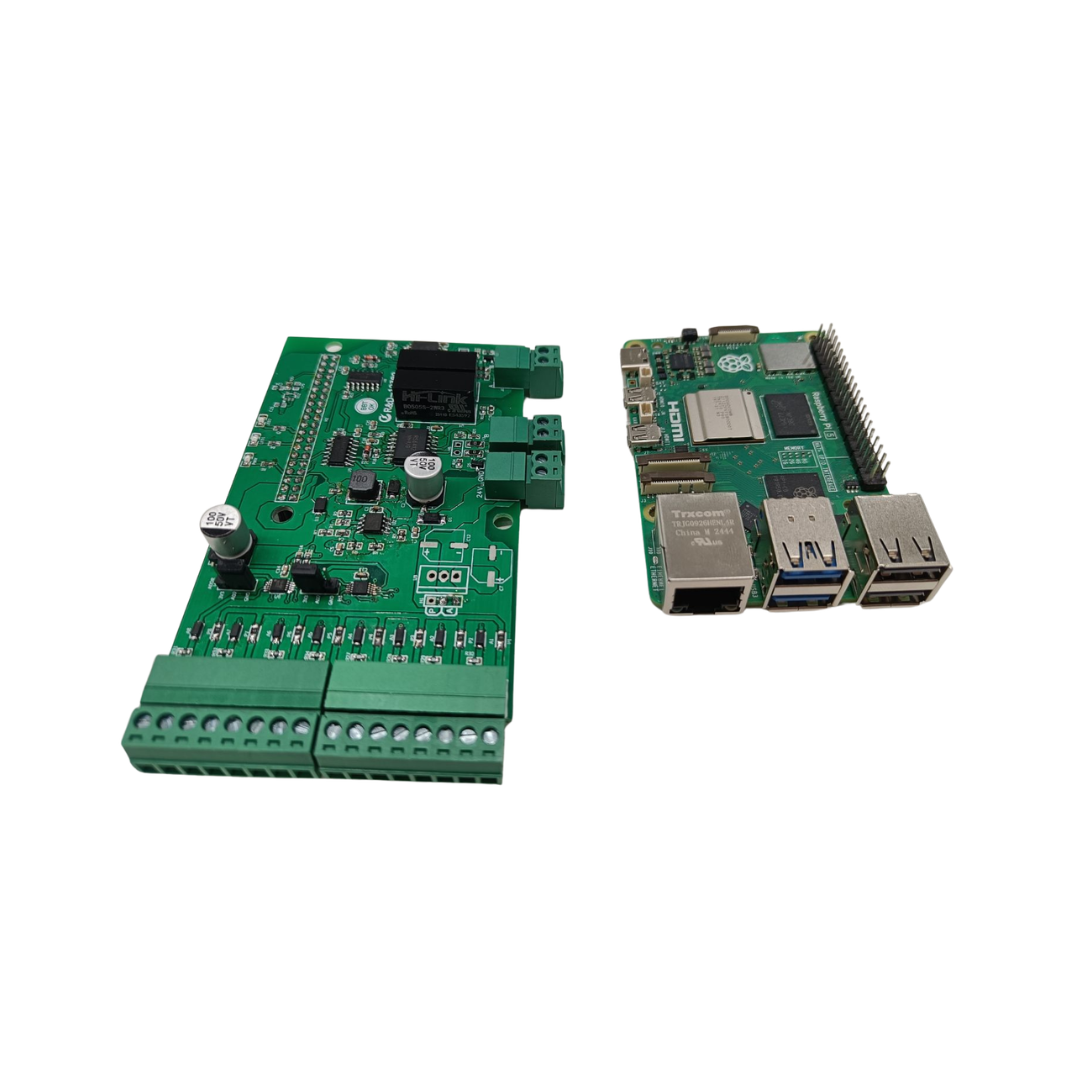

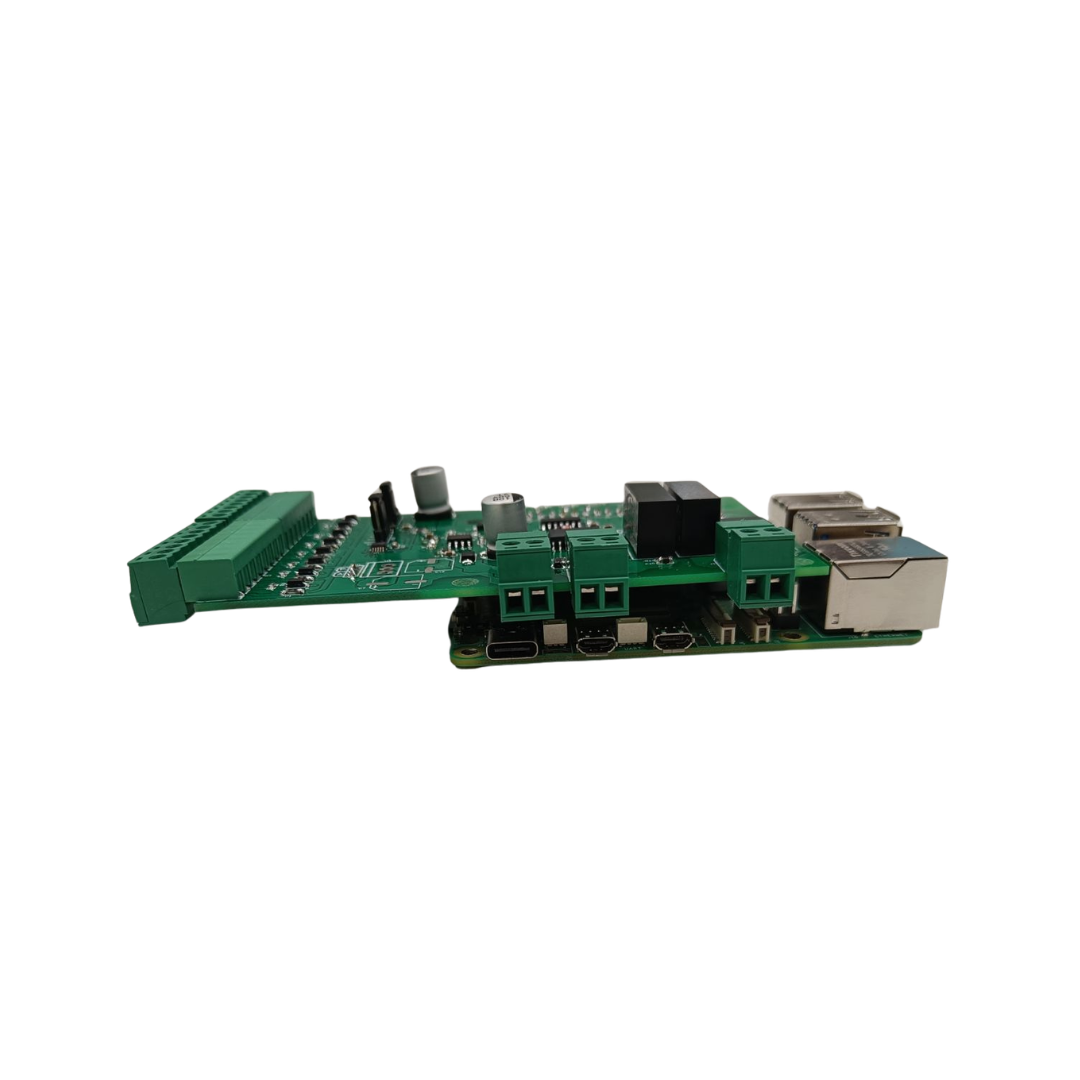

  • Compatibility: Raspberry Pi 5 standard 40 pin GPIO, Stackable design

  • RS485 Channels: 2 (Isolated) with auto direction control, Half-duplex

  • Analog Input Channels: 8 channel  (4–20mA)

  • Input Power Supply: DC 5V – 24V

  • Isolation Module: B0505S Power Isolation

  • Communication Interface: I2C, RS485

  • Protection Features:

    • TVS (Transient Voltage Suppressor) for surge protection

    • Lightning-proof & anti-electrostatic design

    • Auto-recovery fuse

    • Over-current & over-voltage protection diodes

  • Indicators:

    • Power Status LED

    • 2 x Programmable Led’s

  • Design: Industrial-grade, high stability, shock-resistant

Based on 0 reviews

0.0 overall
0
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

There are no reviews yet.

At IoTStudioz, we offer IoT products from various manufacturers and suppliers. Warranty coverage is provided by the respective product manufacturer and is subject to the manufacturer’s applicable warranty terms and conditions. Standard Warranty Coverage Where applicable, products may be covered by a limited manufacturer warranty, typically covering:
  • Manufacturing defects
  • Hardware malfunctions under normal usage conditions
  • Product failures resulting from defects in materials or workmanship
The actual warranty period and coverage may vary depending on the manufacturer and product. Please refer to the product documentation or applicable manufacturer warranty terms for specific details. Warranty Exclusions Manufacturer warranties generally do not cover issues resulting from:
  • Physical damage, mishandling, or improper installation
  • Damage caused by power surges, water, fire, or natural disasters
  • Unauthorized repairs, alterations, or modifications
  • Normal wear and tear
  • Misuse, negligence, or operation outside the product's specified conditions
Warranty Support If you experience an issue with a product, please contact the IoTStudioz support team with:
  • Proof of purchase
  • Product name/model and relevant product details
  • A description of the issue
  • Photos or videos of the issue, where applicable
IoTStudioz may assist with initial troubleshooting and coordination of the warranty claim with the respective manufacturer or authorized service provider. Final warranty eligibility, repair, replacement, or other remedies are subject to the applicable manufacturer's warranty terms and assessment. For product-specific warranty information, please refer to the warranty documentation provided with the product or contact our support team.

1. What interfaces does this HAT provide?

It provides 2-channel isolated RS485 communication and 8-channel 4–20mA analog inputs.

2. Is this HAT compatible with Raspberry Pi 5?

Yes, it is specifically designed for Raspberry Pi 5 and uses an I2C interface for communication.

3. How many 4–20mA sensors can be connected?

Up to 8 industrial 4–20mA sensors can be connected simultaneously.

4. What devices can be connected through RS485?

It can connect PLCs, industrial sensors, meters, controllers, and other RS485 devices.

5. Is the HAT suitable for industrial environments?

Yes. It features isolation, surge protection, overload protection, and anti-interference design for reliable industrial operation.
