EC20CEFAG-MINIPCIE
1 in stock (can be backordered)

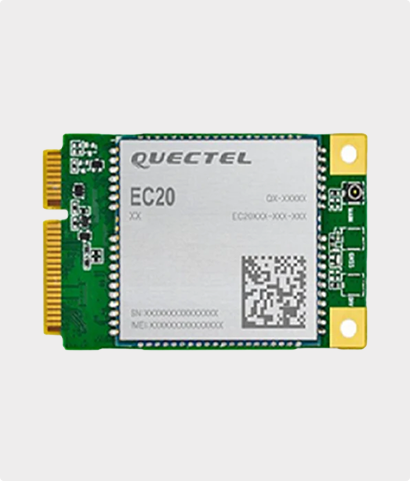

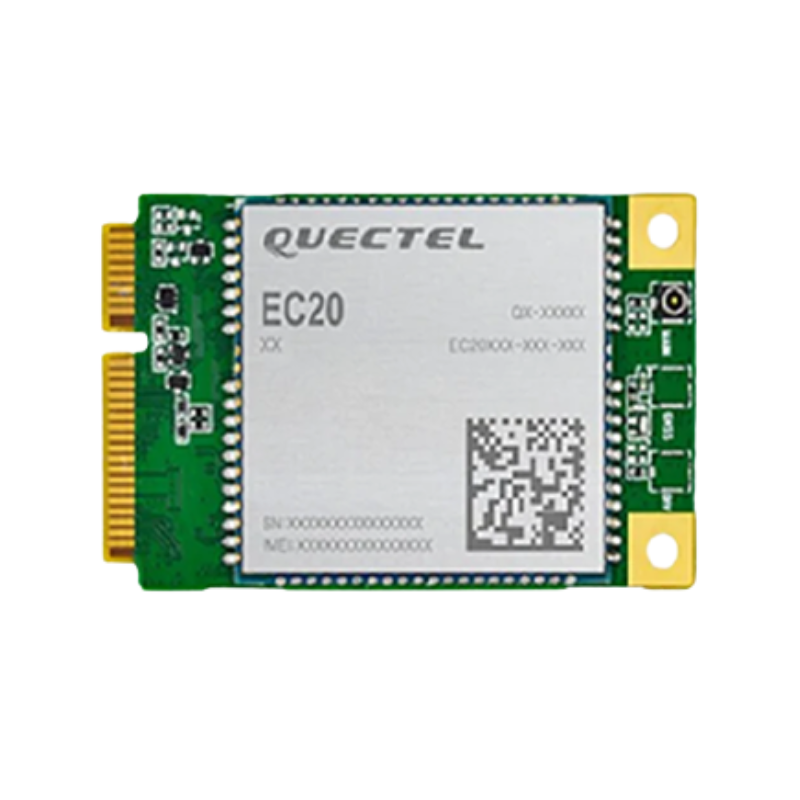

Quectel EC20 R2.1 Mini PCIe is an LTE category 4 module adopting standard PCI Express® MiniCard form factor (Mini PCIe). Adopting the 3GPP Rel.11 LTE technology, it is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.
₹2,910.00
1 in stock (can be backordered)
🏢 B2B / Bulk Purchase Inquiry
For Distributors, System Integrators, OEMs & Project Buyers
✔ Special Pricing | ✔ GST Billing | ✔ Fast Dispatch
-
- EC20CEFAG-MINIPCIE – 4G-LTE Cat4 IoT/M2M-optimized Module with GSM/GPRS/EDGE Coverage
- Category – LTE Family
- Sub-Category – EC20 MiniPCIe Series
- Applications: Router, Data Cards, Rugged Tablet, Automotive, Security and Industry PDA..
- Speed: Max – 150 Mbps (DL) / Max 50 Mbps (UL)
- Supply Voltage: 3.0–3.6 V DC, 3.3 V DC Typical
- Dimension: 51.0 × 30.0 × 4.9 mm
- Weight: Approx. 9.5g
- Network – LTE Cat4 / 3G / 2G
- Extended Temperature Range: -40°C ~ +85°C
- Bands:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B34/B38/B39/B40/B41
UMTS: B1/B8
GSM: 900/1800MHz
- Supply Source: V-DC
