Description

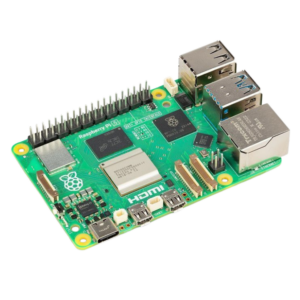

The Raspberry Pi 5 Model 8GB is the latest and most powerful board from the Raspberry Pi Foundation. Designed for performance and efficiency, it delivers 2.5x the speed of Raspberry Pi 4, thanks to the new 2.4GHz quad-core 64-bit Arm Cortex-A76 processor. With dual 4Kp60 display support, blazing-fast USB 3.0, and improved power management, it’s ideal for developers, makers, and industrial projects.
Key Features
-
CPU: 2.4GHz Quad-Core 64-bit Arm Cortex-A76
-
GPU: VideoCore VII
-
RAM: 8GB LPDDR4X @ 4267MT/s
-
WiFi: Dual-band 802.11ac
-
Bluetooth: 5.0 / BLE
-
Storage: High-speed MicroSD (SDR104 supported)
-
Video Output: Dual micro HDMI (up to 4Kp60 each)
-
USB Ports: 2 × USB 3.0, 2 × USB 2.0
-
Ethernet: Gigabit Ethernet with PoE+ support (via PoE+ HAT)
-
Expansion: PCIe 2.0 x1 interface
-
GPIO: 40-pin standard Raspberry Pi GPIO header
-
Power Input: 5V/5A USB-C PD (27W official supply recommended)
-
Extras: Onboard Real-Time Clock, Power Button
-
Dimensions: 7 × 5 × 1 cm
-
Weight: 100g
Camera & Display Interface
-
2 × 4-lane MIPI connectors (CSI/DSI compatible)
Ideal Use Cases
-
Home Automation
-
Edge AI/ML Projects
-
Media Centers & Streaming
-
Robotics & IoT
-
Personal NAS (Network Attached Storage)
-
Education & Coding
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Raspberry Pi 5 Model 8GB |
| Processor | 64-bit Arm Cortex-A76 (Quad-core @ 2.4GHz) |
| RAM | 8GB LPDDR4X SDRAM |
| Storage | MicroSD Slot (SDR104 mode supported) |
| USB Ports | 2 × USB 3.0, 2 × USB 2.0 |
| Video Output | Dual Micro HDMI (4Kp60) |
| Networking | Gigabit Ethernet, Wi-Fi 802.11ac, Bluetooth 5.0 |
| Expansion | PCIe 2.0 x1, 40-pin GPIO header |
| Power Input | 5V/5A USB-C PD |
| Cooling | Requires active cooling for best performance |
| Operating System | Raspberry Pi OS (Linux-based) |
| Dimensions (L×W×H) | 7 × 5 × 1 cm |
| Weight | 100g |
