Description
Overview

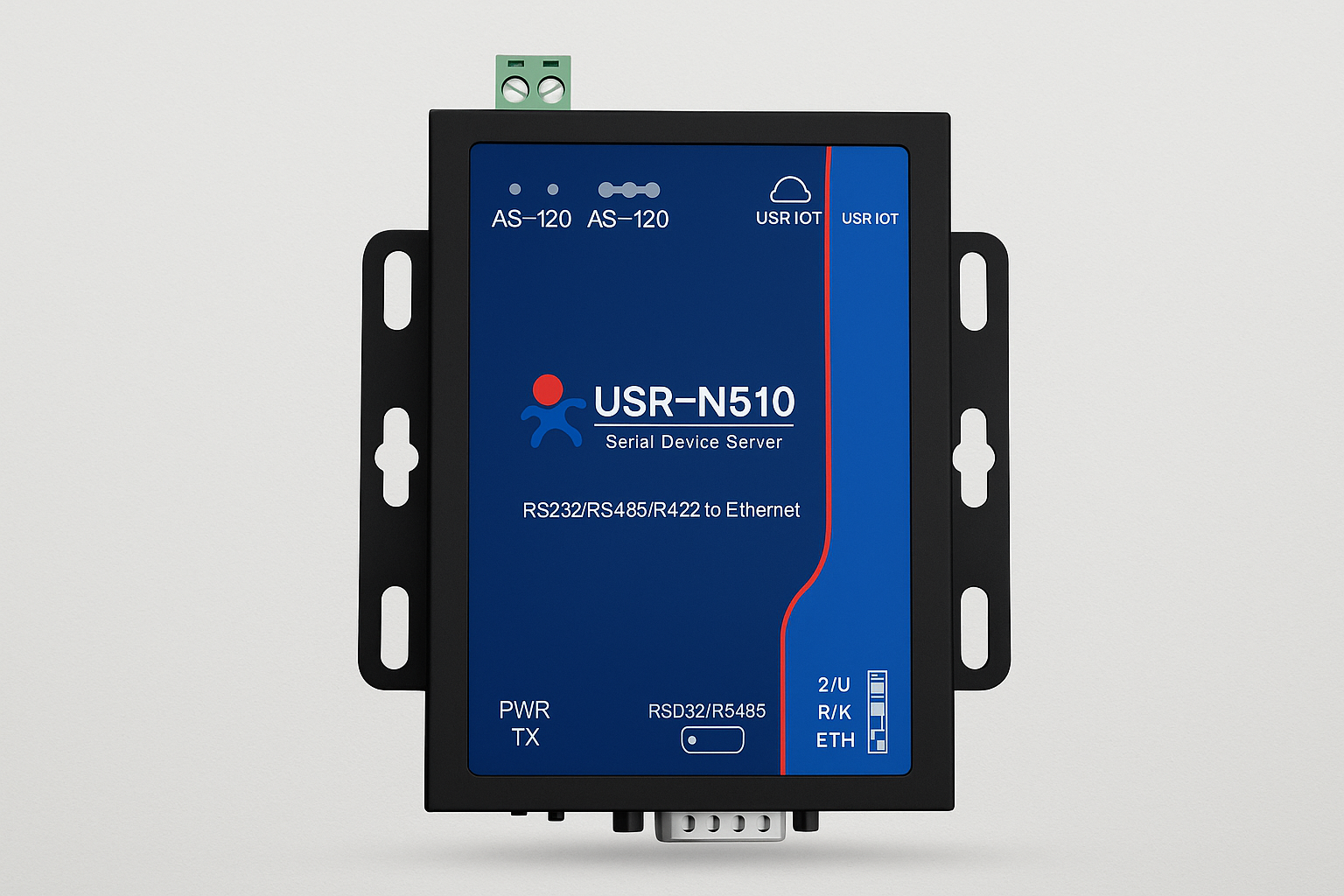

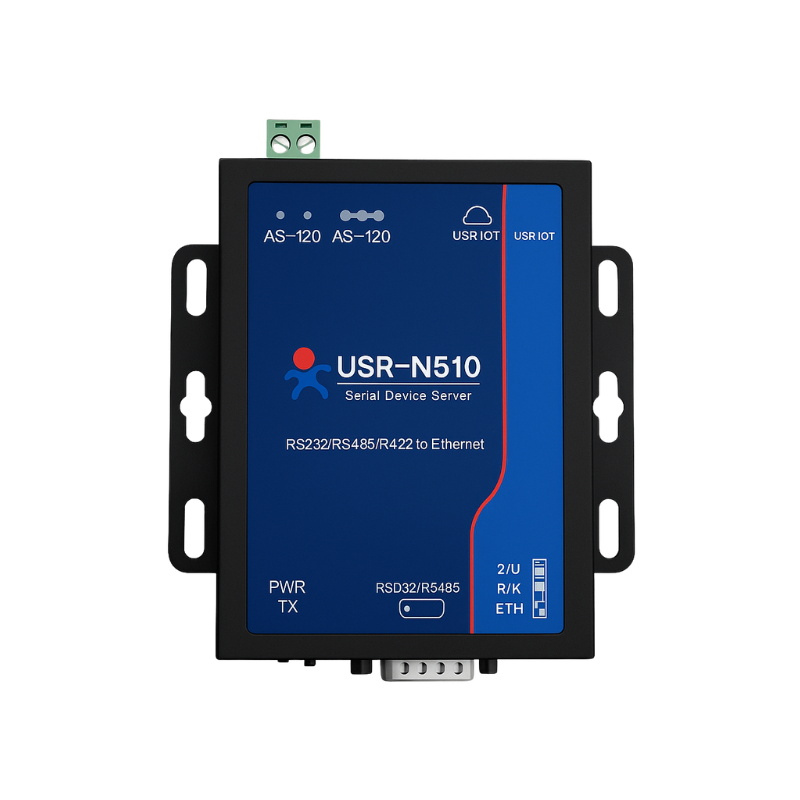

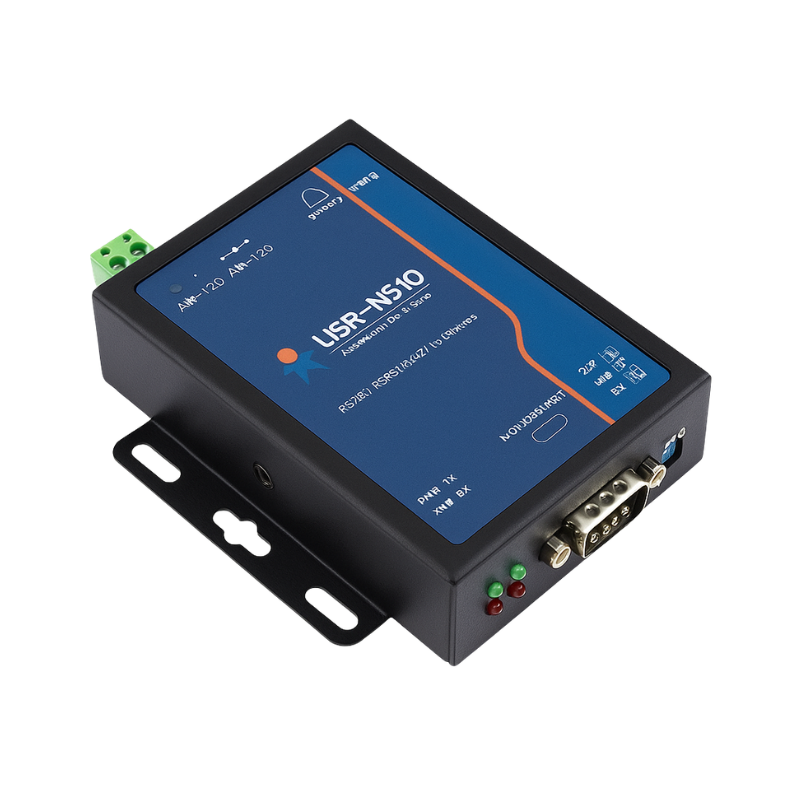

The USR-N510 is a compact and high-performance Serial-to-Ethernet Device Server designed for seamless data transmission between RS232/RS422/RS485 serial ports and Ethernet networks. With a wide temperature range and robust industrial features, this device is ideal for industrial automation, IoT deployments, and remote device monitoring in challenging environments.
Whether you’re connecting legacy serial devices to a modern network or enabling long-distance serial communication via IP, the USR-N510 offers exceptional reliability, flexibility, and ease of integration.
Key Features
-
Protocol Conversion: Transparent bidirectional data transmission between RS232/RS422/RS485 serial ports and Ethernet.
-
Multiple Working Modes: Supports TCP Server, TCP Client, UDP Server, UDP Client, and HTTPD Client modes.
-
Modbus Gateway Support: Seamlessly converts Modbus TCP to Modbus RTU, perfect for industrial communication.
-
Customizable Web Interface: Simple and intuitive web-based configuration and monitoring.
-
Industrial Grade Design:
-
Operating Temperature: -40°C to +85°C
-
ESD Protection: 2KV
-
Surge Protection: Designed for demanding applications
-
-
Watchdog Timer: Automatically reboots the device if unresponsive, ensuring continuous operation.
-
Power Supply Flexibility: Accepts a wide input range of 5V to 36V DC, making it adaptable to various installations.
-
Certifications: CE, FCC, RoHS, and WEEE compliant for global applications.
