Description

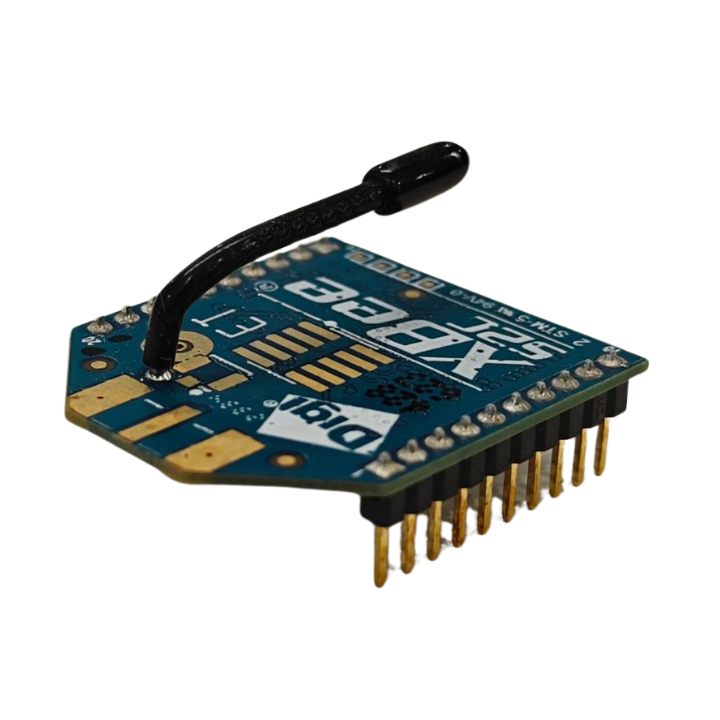

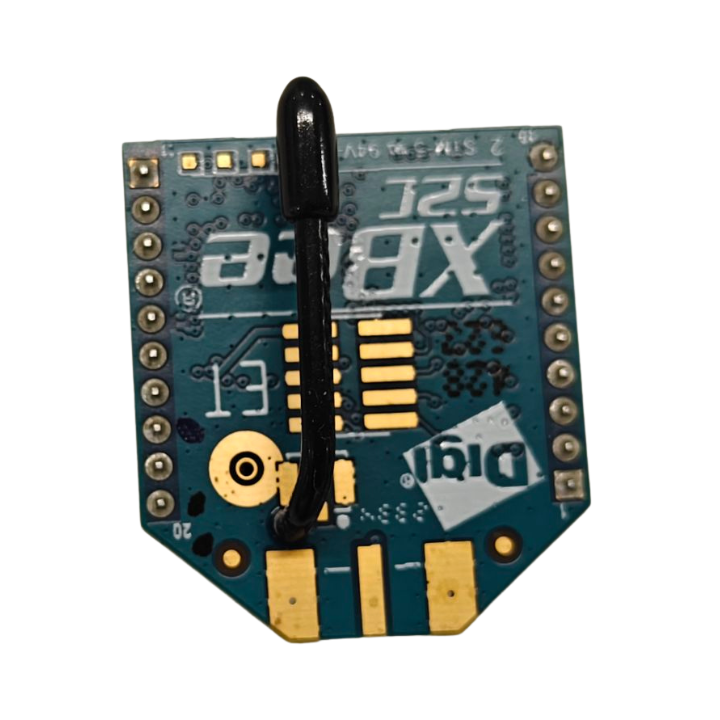

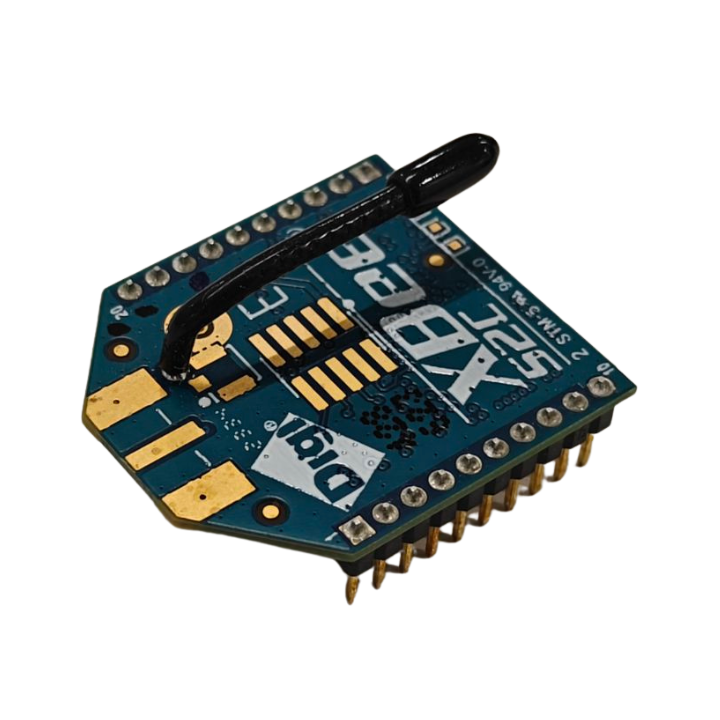

The XBee S2C ZigBee (Wire Antenna) is a high-range wireless module designed for reliable, low-power communication in IoT, automation, and mesh network applications. With upgraded transmit power, ZigBee mesh firmware, and strong interference immunity, it enables stable point-to-point and multi-point networking for microcontrollers, PCs, and embedded systems.
Key Features
- Works with all ZigBee-compatible devices
- Supports binding, multicasting, and ZigBee mesh networking
- 15 digital I/O pins + 4 analog inputs
- Ultra-low sleep current (<1µA)
- OTA, UART, and SPI firmware updates
- Available in Through-Hole & Surface-Mount variants
- Designed for Home Automation, IoT devices, and wireless control systems
Specifications
- Protocol: ZigBee Mesh (ZigBee PRO compliant), AES-128 encryption
- Frequency Band: 2.4 GHz ISM (16 channels)
- Range: Up to 60 m indoors, up to 1200 m outdoors (LOS)
- Data Rate: 250 kbps RF; up to 1 Mbps serial
- Transmit Power: +5 dBm (standard), +8 dBm (boost mode)
- Receiver Sensitivity: –100 to –102 dBm
- Voltage Supply: 2.1 – 3.6 V (typ. 3.3 V)
- Power Consumption: 33 mA TX, 28 mA RX, <1 µA sleep
- I/O & ADC: 15 GPIO pins, 4×10-bit ADC inputs
- Interfaces: UART and SPI
- Antenna Options: Wire, PCB, U.FL, or RPSMA (varies by model)
- Operating Temperature: –40 °C to +85 °C
- Size: 24.38 mm × 27.61 mm (standard XBee footprint)
