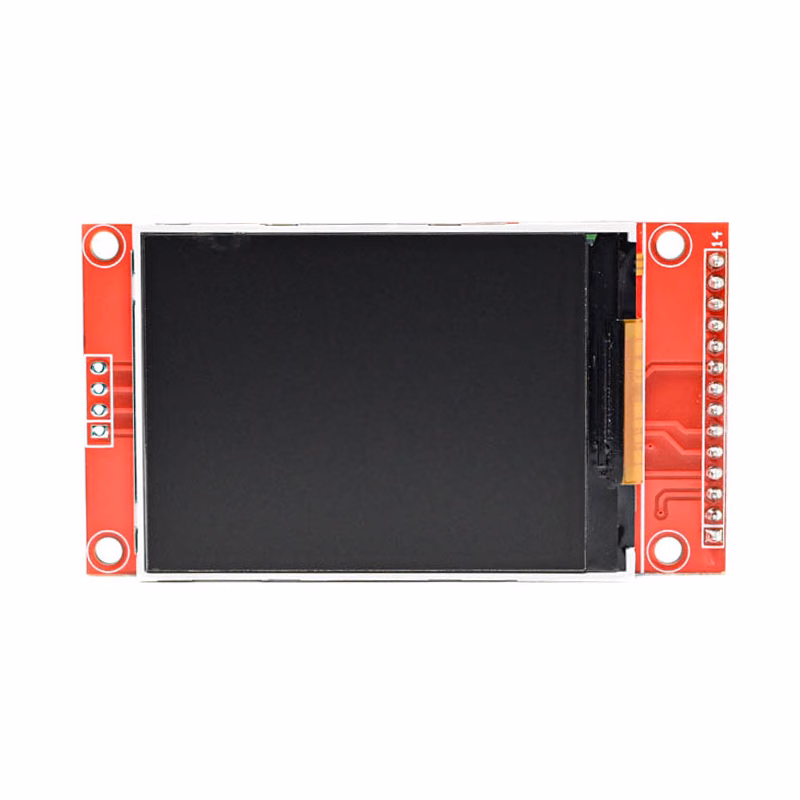

2.4-inch SPI Interface 240×320 TFT Display Module
🏢 Request Bulk Pricing for Your Project
For Distributors, System Integrators, OEMs & Project Buyers
✔ Bulk Discounts | ✔ GST Billing | ✔ Fast Dispatch
₹650.00
The 2.4-inch SPI Interface 240×320 TFT Display Module is a compact and versatile color display designed for DIY electronics, embedded systems, Arduino projects, Raspberry Pi applications, and other microcontroller-based projects.
Featuring a 240×320 pixel resolution, serial SPI interface, wide viewing angle, and support for popular display driver ICs such as ILI9341 and ST7789, this TFT module provides an easy-to-integrate display solution while using fewer I/O pins.
Key Features
- 2.4-inch TFT color display
- 240 × 320 pixel resolution
- SPI serial interface for simple communication
- 10-pin interface
- Supports ILI9341 / ST7789 driver ICs
- 3.3V to 5V operating voltage
- White LED backlight
- 262K / 65K color support
- Wide viewing angle with good contrast
- Supports 2GB and 4GB SD cards
- Hardware SPI interface for SD card communication
- Compatible with UTFT
- Suitable for Arduino, Raspberry Pi, and other embedded platforms
- Compact design for easy integration into electronic projects

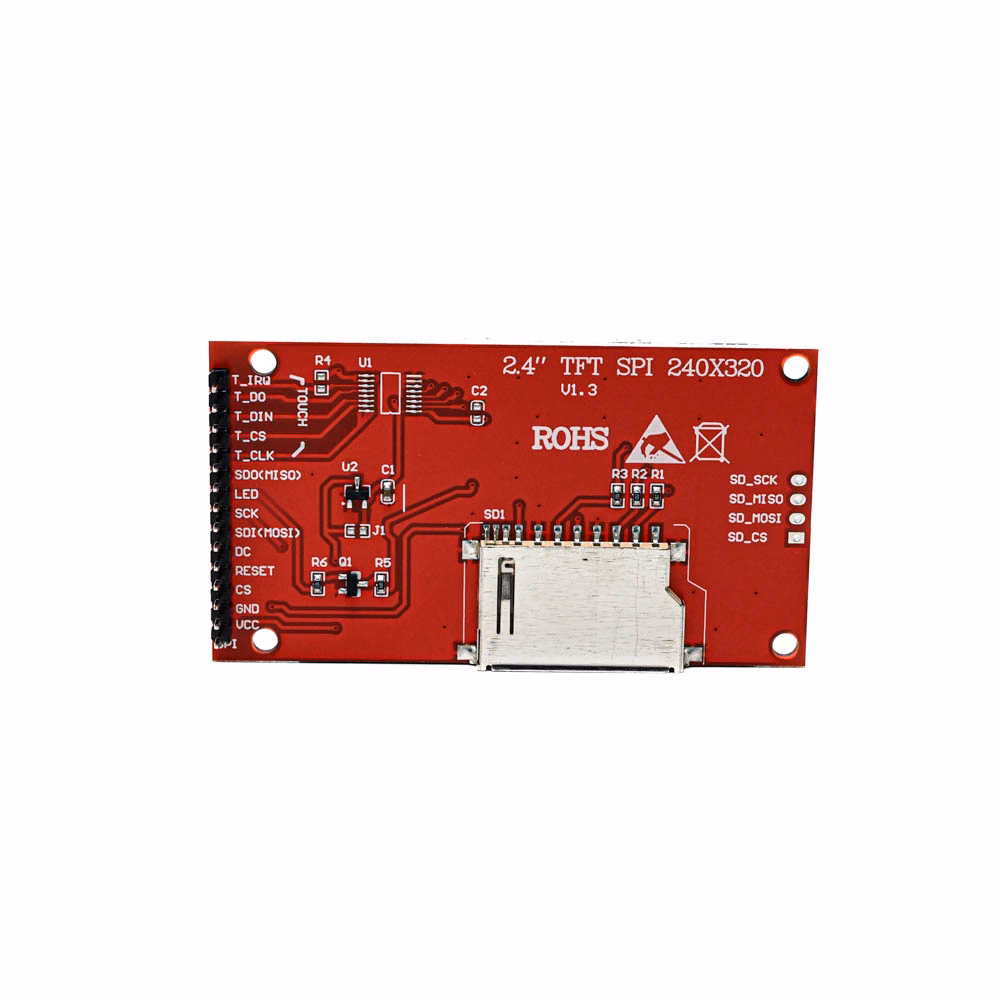

Pin Configuration
| Pin | Description |
|---|---|
| SDO | Serial data output |
| LED | 3.3V backlight power / I/O |
| SCL | SPI serial clock input |
| SDA / SDI | SPI serial data input |
| DC | Data / Command selection |
| RST | Reset, active low |
| CS | Chip Select, active low |
| GND | Ground |
| VDD33 | 3.3V power supply |
Applications
- Arduino and Raspberry Pi projects
- DIY electronics projects
- Embedded display systems
- IoT devices
- Industrial control panels
- Smart monitoring systems
- Portable electronic devices
- HMI and user-interface applications
- Prototype and development projects
Why Choose This TFT Display Module?
With its compact 2.4-inch size, 240×320 resolution, SPI interface, and low pin requirement, this TFT display is an ideal choice for projects where space and GPIO availability are limited. Its compatibility with popular driver ICs makes it suitable for a wide range of embedded and IoT applications.
Applications
- Arduino and Raspberry Pi projects
- DIY electronics projects
- Embedded display systems
- IoT devices
- Industrial control panels
- Smart monitoring systems
- Portable electronic devices
- HMI and user-interface applications
- Prototype and development projects
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | TFT Display Module |
| Display Size | 2.4 Inch |
| Resolution | 240 × 320 Pixels |
| Interface | SPI |
| Operating Voltage | 3.3V – 5.0V |
| Driver IC | ILI9341 / ST7789 |
| Backlight | White LED |
| Color Depth | 262K / 65K Colors |
| Interface Pins | 10 Pins |
| SD Card Support | 2GB / 4GB |
| SD Card Interface | Hardware SPI |
| Display Type | TFT Color LCD |
| Shipping Weight | Approx. 0.05 kg |
| Shipping Dimensions | 8 × 10 × 2 cm |
