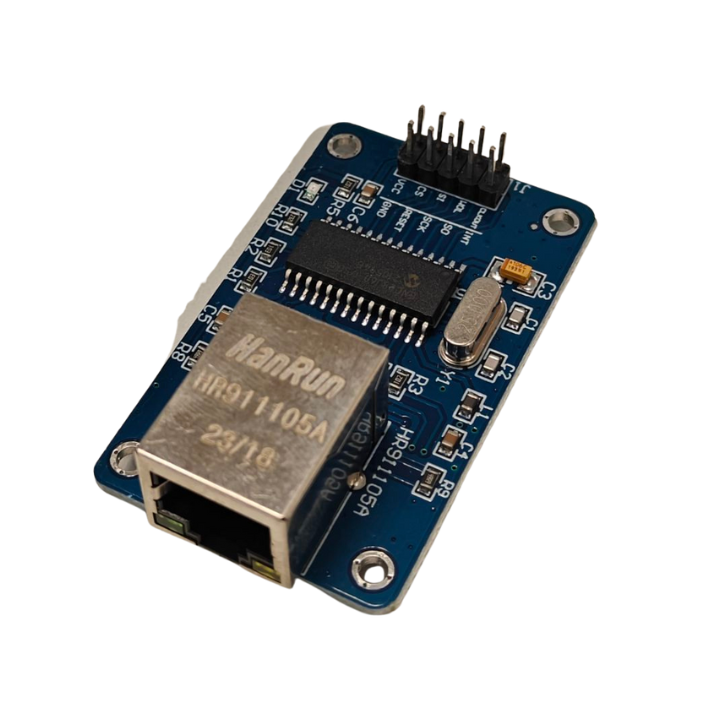

ENC28J60 Ethernet Module (10-Pin SSOP)

Description

The ENC28J60 Ethernet Module is a compact and affordable solution for adding wired Ethernet connectivity to microcontrollers. Built around Microchip’s ENC28J60 controller, it provides reliable 10BASE‑T networking via SPI, making it ideal for IoT devices, automation systems, remote monitoring, and embedded Ethernet projects.

Key Features & Specifications

• Ethernet: 10BASE‑T with RJ45 connector, integrated magnetics, and link/activity LEDs
• Controller: ENC28J60 IEEE 802.3 Ethernet controller with 8 KB buffer, CRC engine, and full/half duplex capability
• Interface: High‑speed SPI (up to 20 MHz) compatible with Arduino, ESP32, STM32, AVR, and PIC
• Input Voltage: 3.3 V–5 V with onboard 3.3 V LDO regulator; Logic Level: 3.3 V
• Power Consumption: 120–180 mA
• Operating Temperature: –40 °C to +85 °C

Additional Features

• Clock: 25 MHz crystal oscillator
• Pins: Reset pins and standard header for easy interfacing
• Design: Compact, stable, breadboard‑friendly PCB

Ideal Applications

IoT devices, sensor networks, industrial automation, embedded web servers, remote monitoring, and Ethernet‑based prototyping.

Package Includes

• 1 × ENC28J60 Ethernet Module (10-Pin SSOP)
