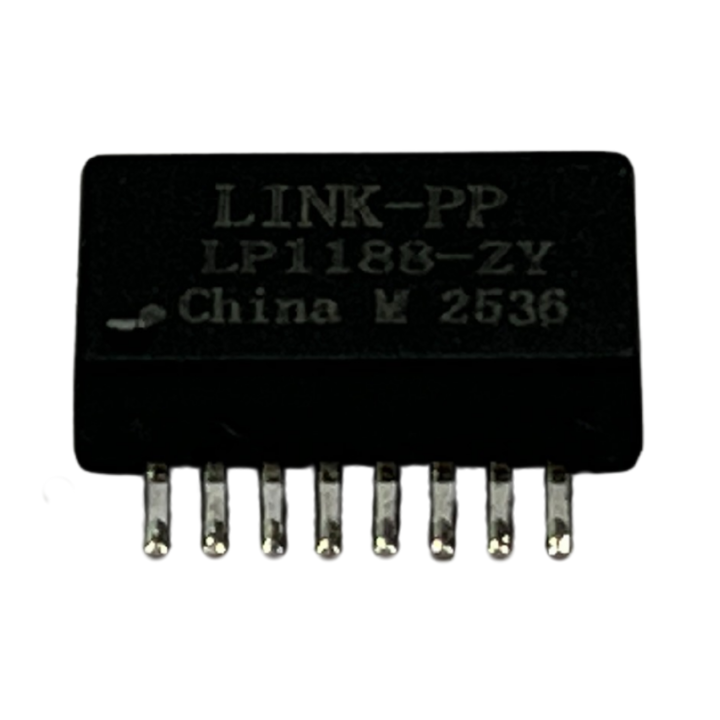

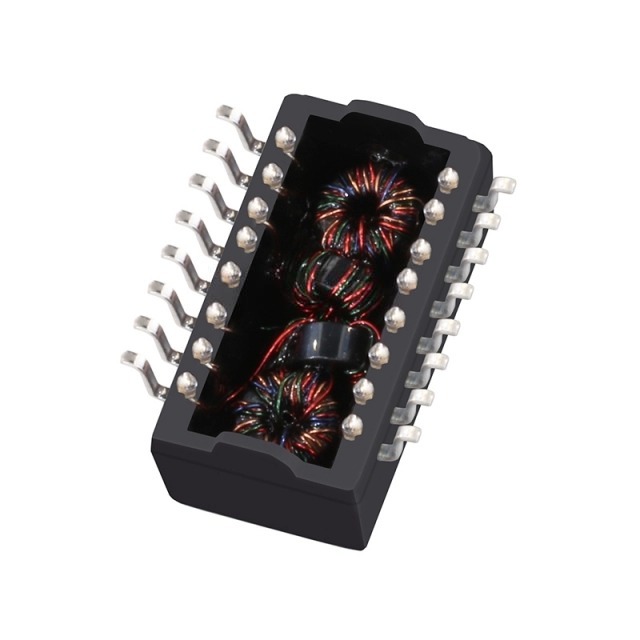

The LP1188-ZY 10/100 Base-T Single Port Ethernet Transformer Module is a high-performance LAN transformer designed for Ethernet applications requiring reliable data transmission and signal integrity. This 16-pin, surface-mount (SMD) module provides excellent isolation and common-mode noise suppression, making it ideal for use in routers, switches, network interface cards, IP cameras, and industrial automation devices.

Engineered for 10/100 BASE-T Ethernet systems, the LP1188-ZY ensures compliance with IEEE 802.3 standards, offering stable performance across a wide temperature range. Its compact design and open-frame construction make it a dependable choice for space-constrained network devices.

Key Features

• Model: LP1188-ZY
• Data Rate: 10/100 BASE-T, 100Mbps
• Number of Ports: Single Port
• Mounting Type: Surface Mount (SMD)
• Pin Count: 16
• Turns Ratio (TX/RX): 1CT:1CT
• Configuration (RX/TX): T, C, S
• Operating Temperature: -40°C to +85°C
• Isolation Voltage: 1500Vrms (Typical)
• Core per Port: 4
• Construction: Open Frame
• Auto MDI/MDIX Support: Yes
• Application Type: Ethernet (Non-PoE)

Compliance & Standards

• Compliant with: IEEE 802.3 (10/100BASE-T Ethernet)
• Certifications: UL, REACH, RoHS, ISO9001, ISO14001
• Quality Grade: Industrial

Applications

The LP1188-ZY is suitable for a wide range of Ethernet-enabled devices, including:

• Routers and Switches
• Set-Top Boxes
• Network Interface Cards (NICs)
• IP Cameras and Digital Cameras
• Smart Power Supplies (SMPS)
• Industrial IoT Devices and Controllers

Mechanical Dimensions

• Package Height: 5.1 mm
• Package Length: 12.8 mm
• Package Width: 9.3 mm

Package Information

• Type: Tape & Reel (SMD)
• Product Status: Active
