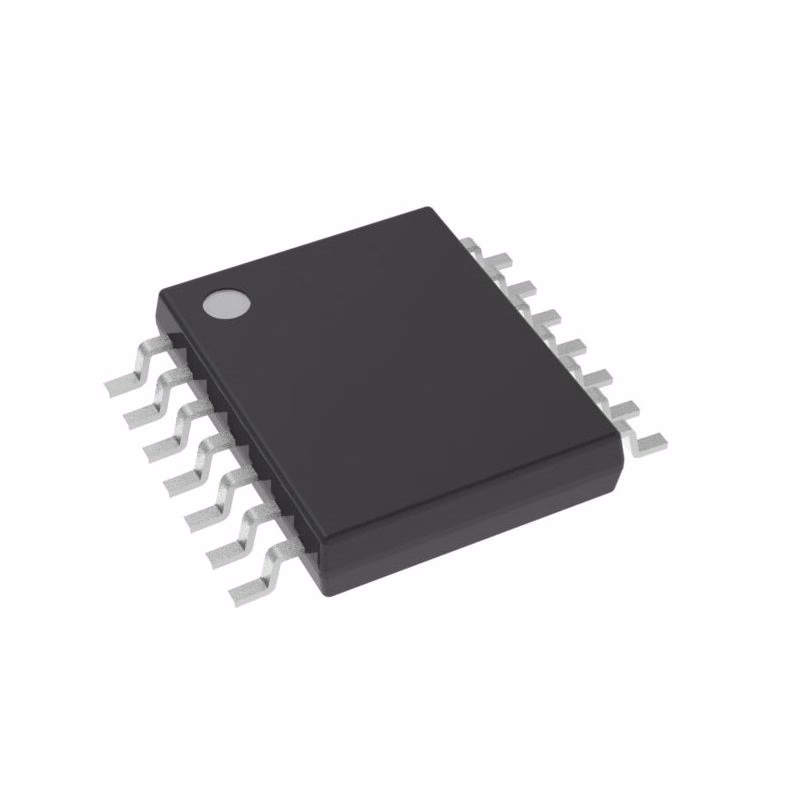

The SN74LV04APWR from Texas Instruments is a high-performance logic inverter IC featuring six independent inverter circuits in a compact TSSOP-14 package. It operates over a wide 2V to 5.5V supply voltage range and offers low power consumption with a typical propagation delay of 7.5 ns at 5V with 50pF load.

Designed for reliable digital logic applications, this IC supports high-speed signal inversion while maintaining low quiescent current. It is suitable for various embedded systems, industrial electronics, control circuits, and digital logic applications.

Key Features

• Manufacturer: Texas Instruments
• Part Number: SN74LV04APWR
• IC Type: Hex Inverter / Logic Inverter
• Number of Circuits: 6
• Number of Inputs per Circuit: 1
• Package: TSSOP-14
• Supply Voltage: 2V to 5.5V
• Quiescent Supply Current: 20 µA
• Maximum Propagation Delay: 7.5 ns @ 5V, 50pF
• Operating Temperature: -40°C to +85°C
• Input Logic High: 1.5V
• Input Logic Low: 500mV
• Output High Current (IOH): 12mA
• Output Low Current (IOL): 12mA
• RoHS: Compliant

Applications

The SN74LV04APWR can be used in:

• Digital logic circuits
• Embedded systems
• Signal inversion applications
• Industrial control systems
• Microcontroller and processor interfaces
• Electronic switching and control circuits
• General-purpose logic applications

Why Choose SN74LV04APWR?

The SN74LV04APWR combines low power consumption, fast switching performance, wide operating voltage range, and six independent inverter circuits in a space-efficient TSSOP-14 package. It is a practical choice for designers looking for reliable logic inversion in embedded and industrial electronic systems.
