The E2E-X2Y1 2M OMRON E2E-Series Proximity Sensor (AC 2-Wire) is a durable, IP67-rated inductive sensor with a 2 mm sensing range, designed for reliable metal detection in industrial automation applications.

₹4,000.00

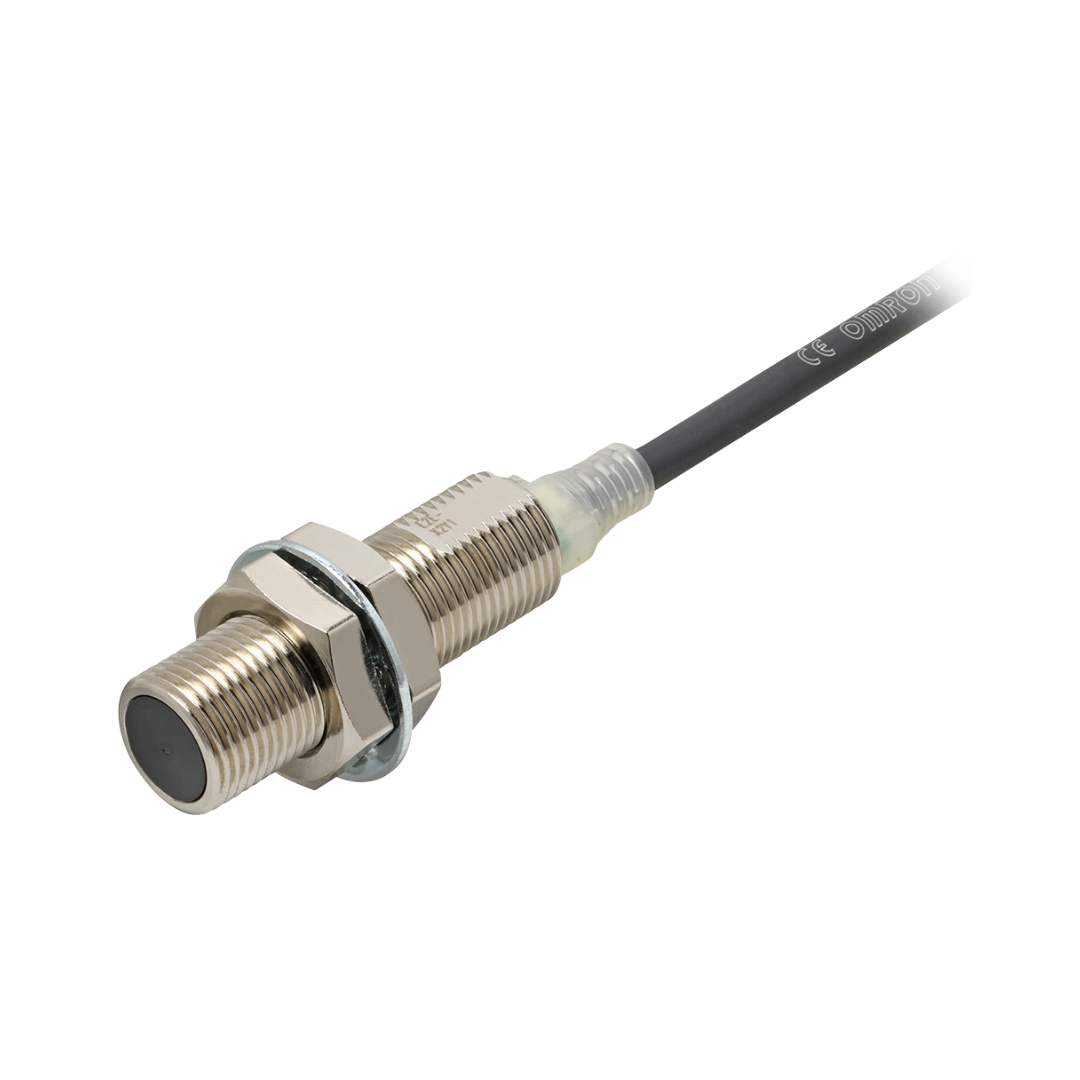

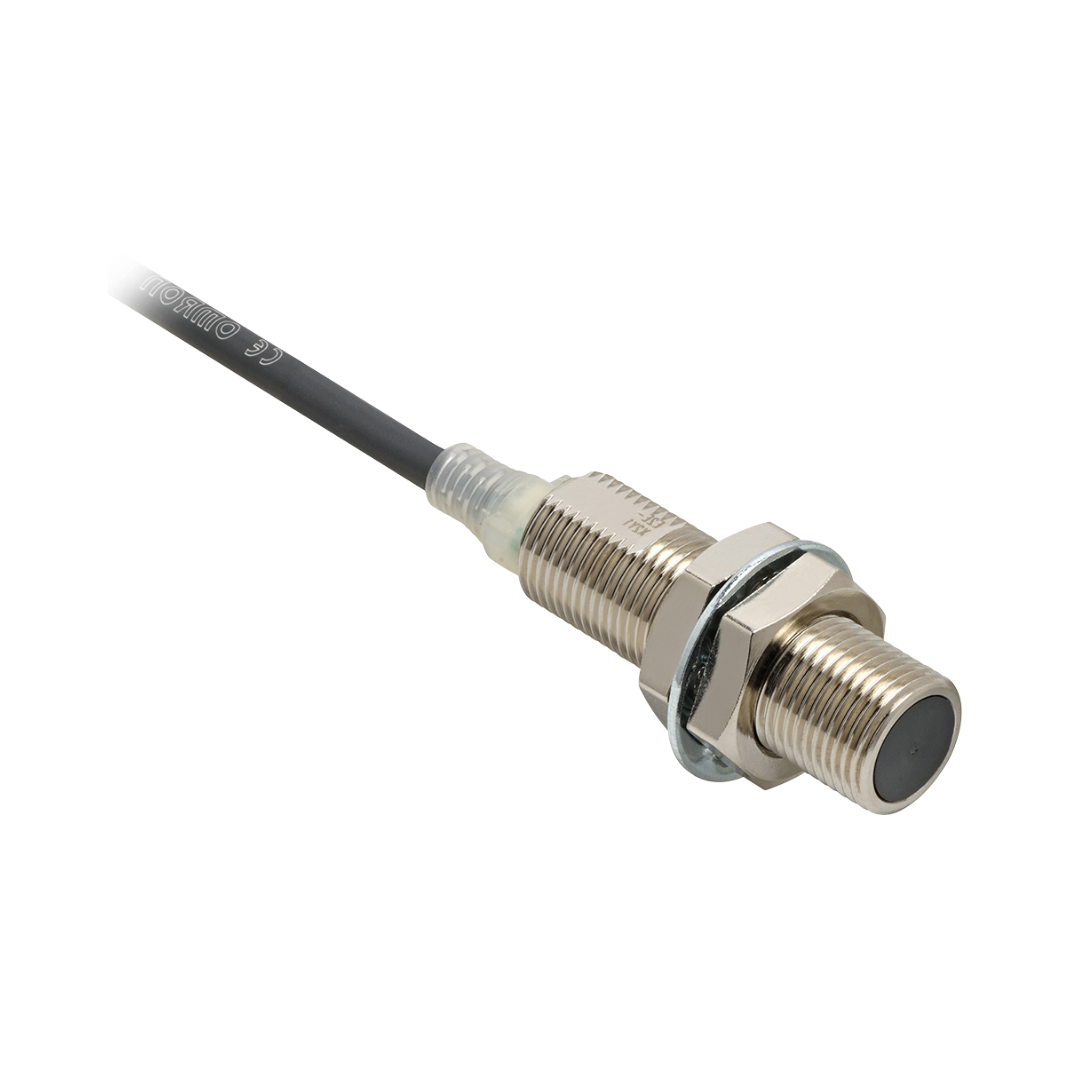

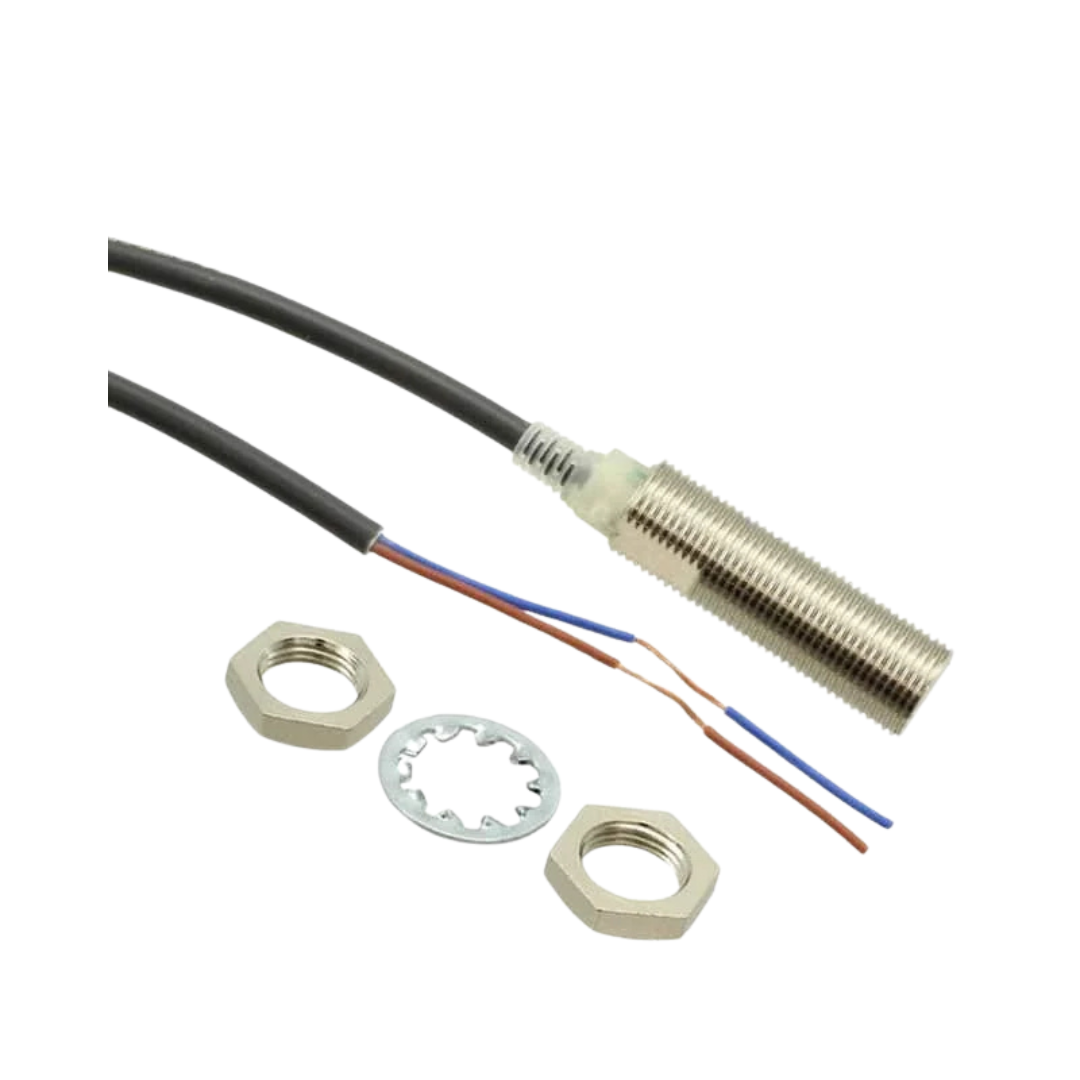

The E2E-X2Y1 2M OMRON E2E-Series Proximity Sensor (AC 2-Wire) is a reliable inductive sensor designed for precise detection of ferrous metals with a 2 mm sensing range. Its M12 cylindrical, shielded design ensures accurate performance and easy installation in industrial applications.

Operating on 24–240 VAC, it features a 2-wire Normally Open output, making integration simple. Built with a nickel-plated brass body and IP67 protection, it is resistant to dust, water, and oil, ensuring durability in harsh environments.

With a 2-meter oil-resistant cable, wide temperature range, and built-in LED indicator, this sensor is ideal for industrial automation and machinery applications.

Use Cases:

Metal object detection in industrial automation
Object counting and positioning on conveyor systems
Machine part position sensing (pistons, shafts, slides)
Packaging and assembly line detection
Automotive manufacturing processes
Non-contact replacement for limit switches
Safety and interlocking systems
CNC and heavy machinery applications

Features & Specifications:

Feature	Specification
Sensing Method	Inductive type
Sensing Distance	2 mm ±10%
Sensing Object	Ferrous metals (iron 12x12x1 mm standard object)
Sensing Head Size	M12 (Cylinder type, with screw)
Shielding	Shielded (Embedded forehead)
Power Source	AC 2-wire models
Power Supply Voltage	24 to 240 VAC (Operating range: 20 to 264 VAC)
Operation Mode	Normally Open (NO)
Control Output (Switching Capacity)	5 to 200 mA
Response Frequency	25 Hz max.
Leakage Current	1.7 mA max.
Connection Method	Pre-wired cable (2 m length)
Cable Specification	Oil-resistant PVC
Degree of Protection	IP67 (IEC standard) and oil-proof (company standard)
Body Material	Brass nickel plating case; PBT sensing surface
Operating Temperature	-40 to 85 ℃ (with no freezing or condensation)
Protective Circuit	Surge suppressor
Indicator	Operation indicator (red LED)

Category: Proximity Sensor Tag: proximity Sesnsor Brand: Omron

Feature	Specification
Sensing Method	Inductive type
Sensing Distance	2 mm ±10%
Sensing Object	Ferrous metals (iron 12x12x1 mm standard object)
Sensing Head Size	M12 (Cylinder type, with screw)
Shielding	Shielded (Embedded forehead)
Power Source	AC 2-wire models
Power Supply Voltage	24 to 240 VAC (Operating range: 20 to 264 VAC)
Operation Mode	Normally Open (NO)
Control Output (Switching Capacity)	5 to 200 mA
Response Frequency	25 Hz max.
Leakage Current	1.7 mA max.
Connection Method	Pre-wired cable (2 m length)
Cable Specification	Oil-resistant PVC
Degree of Protection	IP67 (IEC standard) and oil-proof (company standard)
Body Material	Brass nickel plating case; PBT sensing surface
Operating Temperature	-40 to 85 ℃ (with no freezing or condensation)
Protective Circuit	Surge suppressor
Indicator	Operation indicator (red LED)
