Raspberry Pi 5 (2GB RAM) features a 2.4GHz quad-core Arm Cortex-A76 CPU, delivering up to 3× the performance of Pi 4. With dual 4K display support and enhanced graphics and camera processing, it’s perfect for desktop, industrial, and embedded projects.
Raspberry Pi
Raspberry Pi 5 Model 4GB RAM
🏢 Request Bulk Pricing for Your Project
For Distributors, System Integrators, OEMs & Project Buyers
✔ Bulk Discounts | ✔ GST Billing | ✔ Fast Dispatch

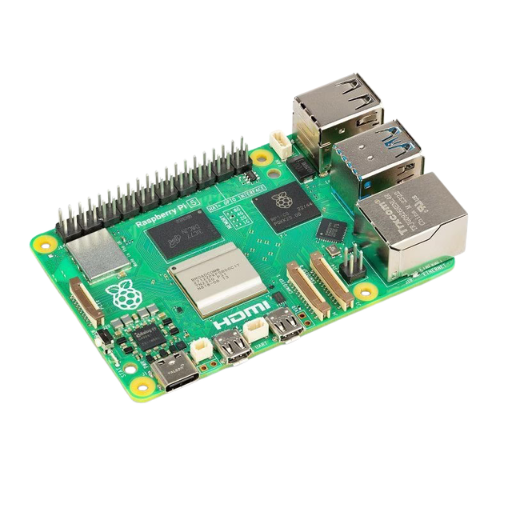

The Raspberry Pi 5 Model 4GB features a 2.4GHz quad-core Arm Cortex-A76 processor, delivering up to 3x faster performance than Raspberry Pi 4. With 4GB LPDDR4X RAM, dual 4K display support, PCIe expansion, Wi-Fi, and Bluetooth connectivity, it is ideal for IoT, AI, automation, and embedded applications.
₹11,000.00
The Raspberry Pi 5 Model 4GB RAM is the most powerful and advanced Raspberry Pi released to date, delivering significantly improved processing performance, enhanced graphics capabilities, and expanded connectivity options. Powered by a 2.4GHz quad-core 64-bit Arm Cortex-A76 processor, the Raspberry Pi 5 offers up to 3x higher CPU performance compared to the Raspberry Pi 4, making it ideal for IoT, industrial automation, edge computing, AI applications, robotics, multimedia systems, and embedded development projects.
Featuring 4GB LPDDR4X SDRAM, an advanced VideoCore VII GPU, dual 4K HDMI display support, high-speed USB 3.0 connectivity, PCIe expansion, and dual-band wireless communication, the Raspberry Pi 5 provides a reliable platform for both professional developers and technology enthusiasts.
Whether you’re building industrial IoT gateways, smart automation systems, machine vision applications, or powerful desktop computing solutions, the Raspberry Pi 5 delivers exceptional performance and flexibility.

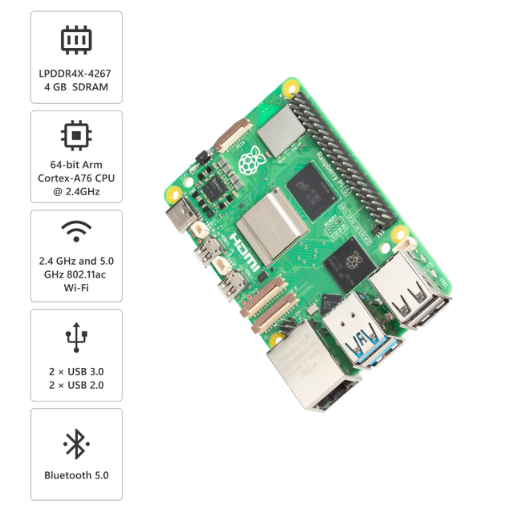

Key Features
- 2.4GHz Quad-Core 64-bit Arm Cortex-A76 Processor
- 512KB L2 Cache per Core and 2MB Shared L3 Cache
- VideoCore VII GPU for Enhanced Graphics Performance
- 4GB LPDDR4X-4267 SDRAM
- Dual-Band 2.4GHz & 5GHz 802.11ac Wi-Fi
- Bluetooth 5.0 and Bluetooth Low Energy (BLE)
- Dual 4Kp60 Display Output via Micro HDMI
- High-Speed MicroSD Card Slot with SDR104 Support
- 2 × USB 3.0 Ports with Simultaneous 5Gbps Operation
- 2 × USB 2.0 Ports
- Gigabit Ethernet with PoE+ Support (PoE+ HAT Required)
- PCIe 2.0 x1 Interface for High-Speed Peripheral Expansion
- Dual 4-Lane MIPI Camera/Display Interfaces
- Standard Raspberry Pi 40-Pin GPIO Header
- Real-Time Clock (RTC) with External Battery Support
- Dedicated On-Board Power Button
- USB Type-C Power Input (5V/5A, PD Enabled)
Use Cases
- Industrial IoT: Build smart gateways, connected devices, and industrial monitoring systems.
- Edge Computing: Process and analyze data locally for faster response and reduced cloud dependency.
- AI & Machine Learning: Run AI models, image processing, and intelligent automation applications.
- Robotics & Automation: Control motors, sensors, cameras, and robotic systems.
- Machine Vision: Support camera-based inspection, object detection, and surveillance applications.
- Smart Home Automation: Manage sensors, appliances, security systems, and smart devices.
- Digital Signage: Power high-resolution displays, kiosks, and interactive information systems.
- Embedded Development: Prototype and develop custom embedded and IoT solutions.
Package Includes
- 1 × Raspberry Pi 5 Model 4GB RAM
Applications
- Industrial IoT Solutions
- Edge Computing Systems
- AI & Machine Learning Projects
- Robotics & Automation
- Smart Home Controllers
- Industrial Gateways
- Digital Signage
- Multimedia & Streaming Applications
- Embedded System Development
- Surveillance & Machine Vision Systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Raspberry Pi 5 |
| RAM Capacity | 4GB LPDDR4X SDRAM |
| Processor | Quad-Core 64-bit Arm Cortex-A76 @ 2.4GHz |
| GPU | VideoCore VII |
| Wireless Connectivity | 802.11ac Dual-Band Wi-Fi, Bluetooth 5.0, BLE |
| Ethernet | Gigabit Ethernet with PoE+ Support |
| USB Ports | 2 × USB 3.0, 2 × USB 2.0 |
| Display Output | 2 × Micro HDMI (Up to 4Kp60) |
| Camera/Display Interface | 2 × 4-Lane MIPI Transceivers |
| GPIO | Standard 40-Pin GPIO Header |
| Storage | MicroSD Card Slot with SDR104 Support |
| Audio | 4-Pole Stereo Audio & Composite Video Port |
| PCIe Interface | PCIe 2.0 x1 |
| Power Supply | 5V/5A via USB Type-C |
| Operating Temperature | -10°C to 60°C |
| Dimensions | 85 × 56 mm |
| Weight | 105 g |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 12 × 8 × 3 cm |
At IoTStudioz, we offer IoT products from various manufacturers and suppliers. Warranty coverage is provided by the respective product manufacturer and is subject to the manufacturer’s applicable warranty terms and conditions.
Standard Warranty Coverage
Where applicable, products may be covered by a limited manufacturer warranty, typically covering:
- Manufacturing defects
- Hardware malfunctions under normal usage conditions
- Product failures resulting from defects in materials or workmanship
- Physical damage, mishandling, or improper installation
- Damage caused by power surges, water, fire, or natural disasters
- Unauthorized repairs, alterations, or modifications
- Normal wear and tear
- Misuse, negligence, or operation outside the product's specified conditions
- Proof of purchase
- Product name/model and relevant product details
- A description of the issue
- Photos or videos of the issue, where applicable
1. What processor does the Raspberry Pi 5 4GB use?
It uses a 2.4GHz quad-core 64-bit Arm Cortex-A76 processor.
2. How much RAM does this Raspberry Pi 5 model have?
It comes with 4GB LPDDR4X-4267 SDRAM.
3. Does Raspberry Pi 5 support dual 4K displays?
Yes, it supports dual 4Kp60 display output through Micro HDMI.
4. What connectivity options are available?
It supports dual-band Wi-Fi, Bluetooth 5.0/BLE, Gigabit Ethernet, USB 3.0, USB 2.0, and PCIe 2.0.
5. What power supply is required?
The Raspberry Pi 5 uses USB Type-C power input with 5V/5A, PD enabled.
