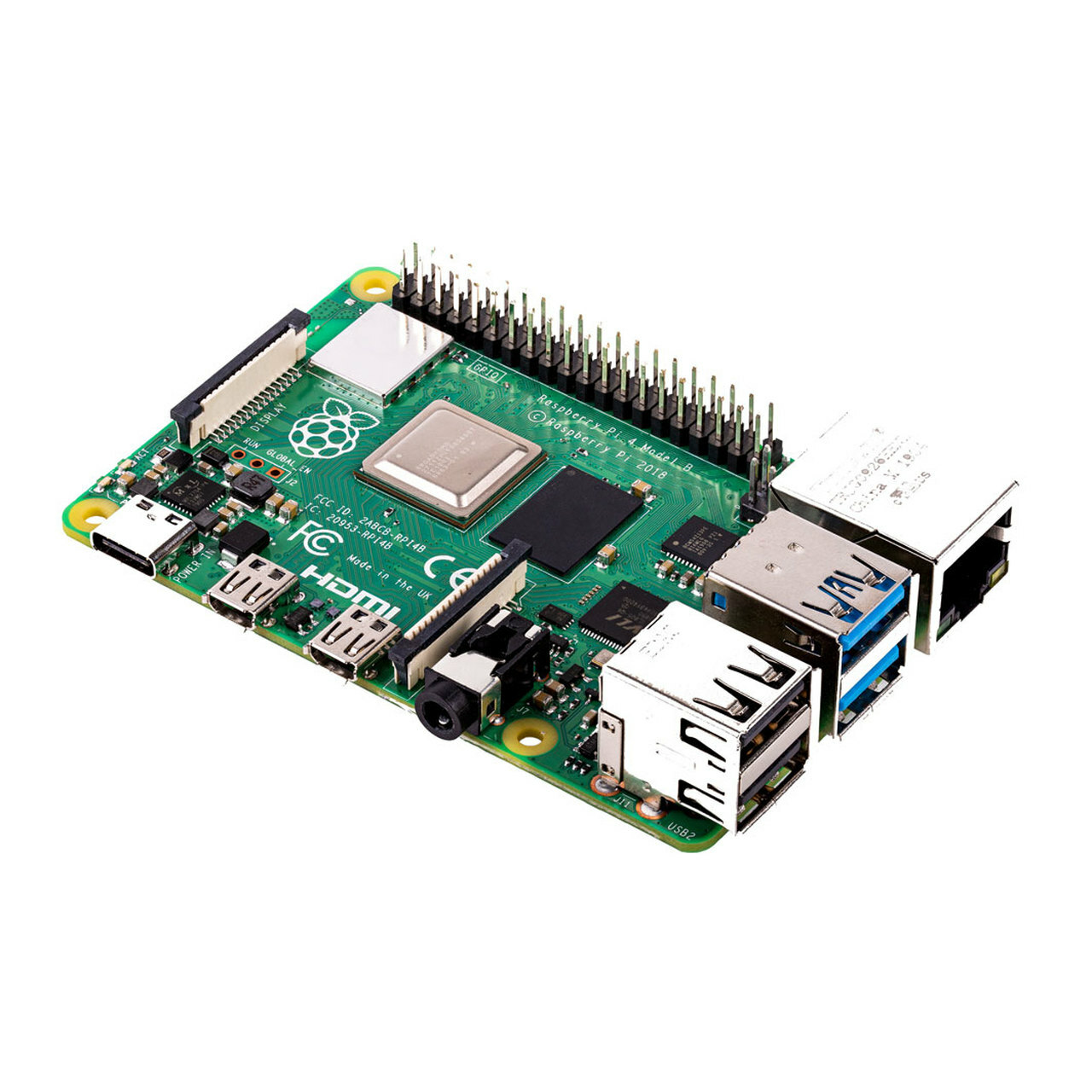

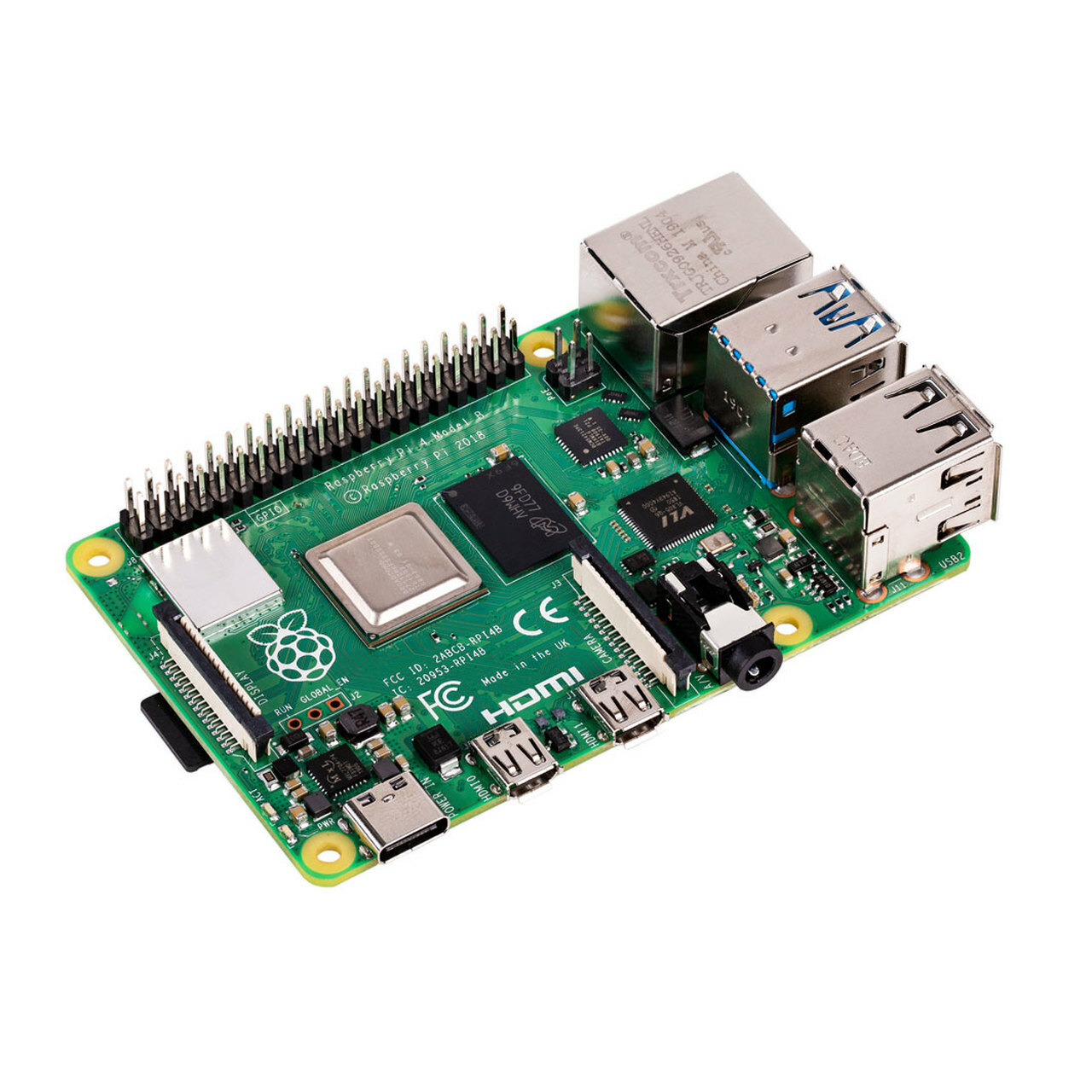

The Raspberry Pi 4 Model is the most advanced board in the Raspberry Pi family, delivering a significant upgrade in processing power, multimedia capabilities, memory, and connectivity over its predecessor, the Raspberry Pi Model. Despite these enhancements, it maintains backward compatibility and similar power efficiency, making it an ideal choice for both developers and hobbyists.

Designed to deliver performance comparable to entry-level desktop PCs, the Raspberry Pi 4 Model is perfect for a wide range of applications including IoT development, embedded systems, home automation, media centers, and edge computing.

Key Features

• Powerful Processing: Equipped with a high-performance 64-bit quad-core processor for faster and smoother operation
• Dual 4K Display Support: Drive two monitors simultaneously via dual micro-HDMI ports (up to 4K resolution)
• Enhanced Multimedia: Supports hardware video decoding up to 4Kp60 for seamless playback
• Advanced Connectivity: Dual-band Wi-Fi (2.4GHz & 5GHz), Bluetooth 5.0, and Gigabit Ethernet
• High-Speed USB Ports: Includes USB 3.0 and USB 2.0 ports for faster data transfer
• PoE Support: Power over Ethernet capability via optional PoE HAT
• Compliance Ready: Pre-certified wireless modules reduce development time and cost

Technical Specifications

Processor

• Broadcom BCM2711
• Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

Memory Options

• On-die ECC support

Connectivity

• Dual-band 2.4GHz & 5GHz IEEE 802.11 b/g/n/ac Wi-Fi
• Bluetooth 5.0 with BLE
• Gigabit Ethernet

USB Ports

• 2 × USB 3.0
• 2 × USB 2.0

GPIO

• Standard 40-pin GPIO header (backward compatible)

Video & Audio

• 2 × micro-HDMI ports (up to 4Kp60)
• 2-lane MIPI DSI display port
• 2-lane MIPI CSI camera port
• 4-pole stereo audio & composite video jack

Multimedia Support

• H.265 (4Kp60 decode)
• H.264 (1080p60 decode, 1080p30 encode)
• OpenGL ES 3.0

Storage

• MicroSD card slot for OS and data storage

Power Supply

• 5V DC via USB-C (minimum 3A)
• 5V via GPIO header (minimum 3A)
• PoE support (requires separate PoE HAT)

Operating Temperature

• 0°C to 50°C

Why Choose Raspberry Pi 4 Model?

With its powerful hardware, versatile connectivity, and compact design, the Raspberry Pi 4 Model is a reliable solution for modern IoT and embedded applications. Whether you’re building prototypes or deploying scalable solutions, it offers the performance and flexibility needed to accelerate your projects.
