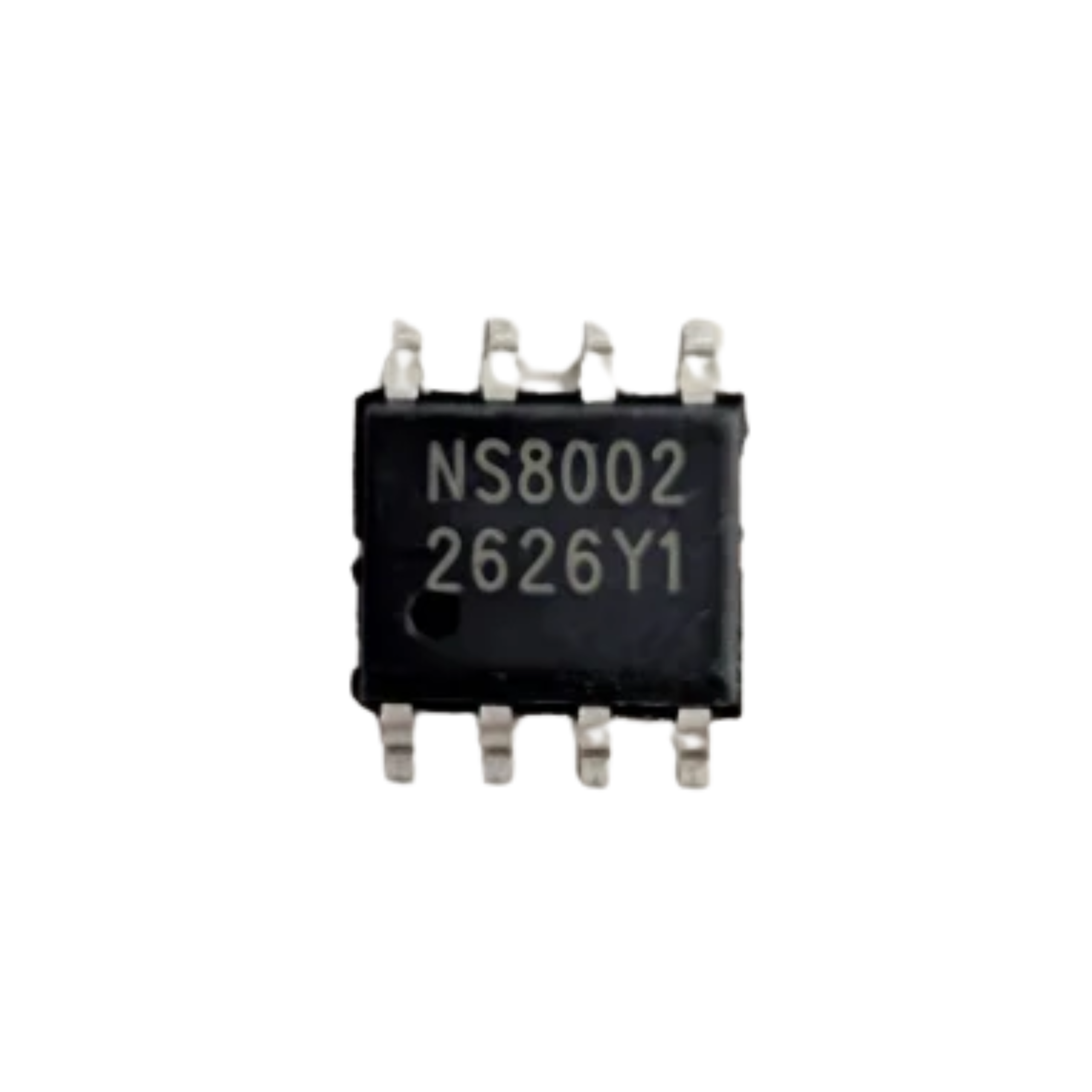

The Shenzhen Nsiway Tech NS8002 is a single-channel Class AB audio power amplifier designed for low-voltage audio applications. It operates within a 3.0V to 5.25V supply range and features a bridge-tied-load (BTL) output configuration for efficient audio amplification.

With a simple application circuit and minimal external components, the NS8002 helps simplify audio system design. It does not require external output coupling capacitors, bootstrap capacitors, or snubber networks. The amplifier also supports an active-high shutdown function to reduce power consumption when audio output is not required.

Housed in a compact SOP-8 package, the NS8002 is suitable for portable electronics, computers, and other low-voltage audio systems.

Key Features

• Class AB Audio Amplifier: Designed for single-channel audio output.

• Output Power: Up to 2.4W at 4Ω load with 10% THD, according to the manufacturer’s specifications.

• Low-Voltage Operation: Supports a supply voltage of 3.0V to 5.25V.

• Low Shutdown Current: Typical shutdown leakage current of 1µA.

• Active-High Shutdown: Enables low-power operation when the amplifier is not in use.

• Adjustable Voltage Gain: Gain can be configured using external resistors.

• Simple Circuit Design: No external output coupling capacitors, bootstrap capacitors, or snubber networks required.

• Unity-Gain Stable: Supports stable operation at unity gain.

• Compact Package: Available in an SOP-8 package.

• Wide Operating Temperature: Operates from -40°C to +85°C.

Product Specifications

Applications

The NS8002 audio amplifier IC can be used in various low-voltage audio applications, including:

• Laptop and desktop computers

• Portable electronic devices

• Low-voltage audio systems

• Compact speaker systems

• Consumer electronics

• Embedded audio applications
